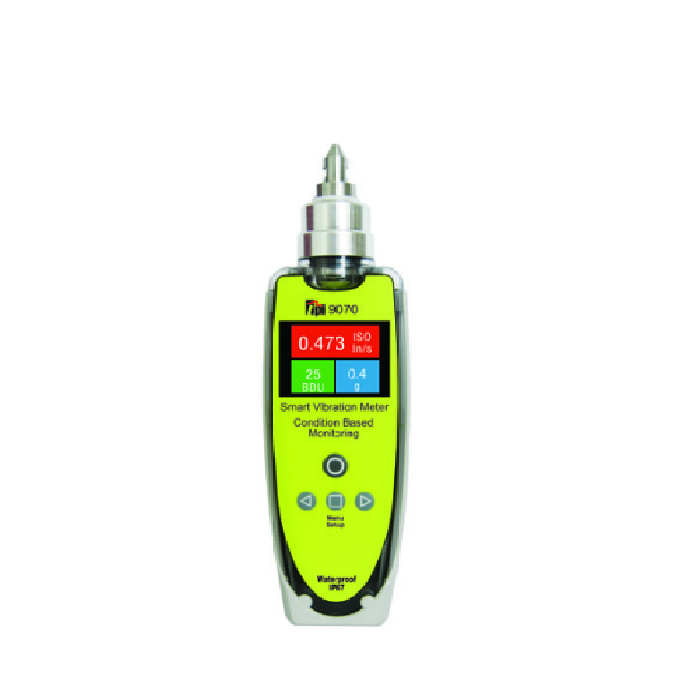

TPI 9070 Vibration Analyzer

Size: H 7.95” W 2.36”

Weight: 9.8oz (280g)

Water: IP67 Waterproof

Operating: 32 ~ 122°F (0 ~ 50°C)

Storage: -4 ~ 158°F (-20 ~70C)

Power Supply: 2xAA batteries

Battery life: Approximately 50 hours of normal use

Frequency ranges: 2/10Hz ~1kHz ISO, 2Hz ~ 3kHz

Frequency resolution: 100 / 200 / 400 / 800 lines

Displayed amplitude units: Acceleration in g / velocity in inches per second or mm per second, Bearing damage in BDU

Displayed frequency units: Hz, CPM or RPM

Input range: +/- 50 g

Dynamic range: 72 dB

Auto set up of VA bands: 2Yes

Accelerometer connection: Internal sensor

Optional Accessories: Magnet
