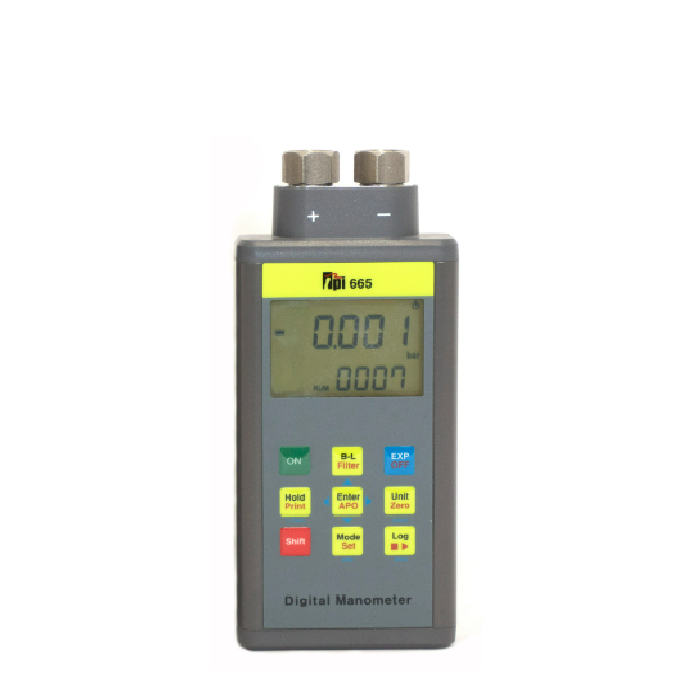

TPI 665 Differential Manometer (±101.5 psi)

Measurement Range: ±101.5 psi (±7bar)

Display: 5 Digit LCD with backlight

Input Type: Differential (1/4” NPT)

Resolution (max): 0.01 psi (0.001 bar) (0.1 inH2O)

Accuracy: 0.2% Full scale

Functions: One Touch Zero, Data Hold, Back-light, Unit Selection, Smoothing, Auto power Off, Min / Max Record, Resolution Selection

Units of Measure: 7 Units (bar, kPa, PSI, mmHg, inHg, mmH2O, inH2O)

Data Logging: 5000 Data, 1sec ~ 24 hour

Data Storage: 16 data points

Communication: IR to USB Interface and PC Application software (optional p/n A665)

Battery Type: AA (1.5V)*2 alkaline (MN1500, LR6)

Battery Life: 600 hours (Typical)

Auto Power Off: 20 minutes (can be disabled)
