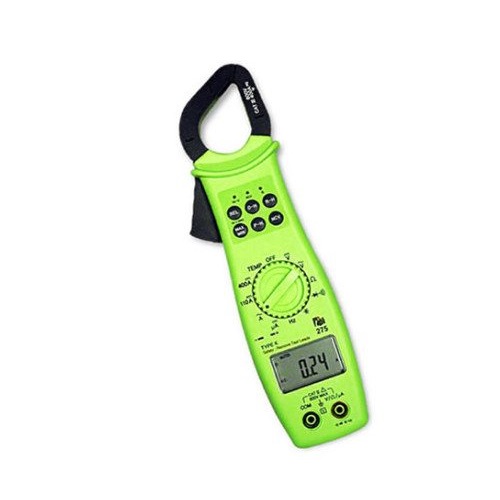

TPI 275 Digital Clamp Meter

Basic DC Accuracy: 0.5%

DCV: 600V / 0.1mV

ACV: 600V / 0.1mV

DCA: 400A / 0.01A

DCμA: 1100μFA / 0.01μA

DCA: 400A / 0.01A

Resistance (maximum): 110MΩ / 0.1Ω

Frequency (maximum): 110MHz / 0.01Hz

Capacitance (maximum): 110mF / 0.001nF

Temperature (maximum): 1000°F / 0.1°F

Diode: Test Current Max 1.5mA

Continuity: Buzzer sounds at approx. 35Ω Response time; 50ms

Agency Approval: CEIEC 1010: CATIII; 600V cULus 3111

Overall Dimensions: 10” x 1.3” x 2.5” (255 x 32.5 x 65mm)

Weight: .8 lbs (363g)

Manual
