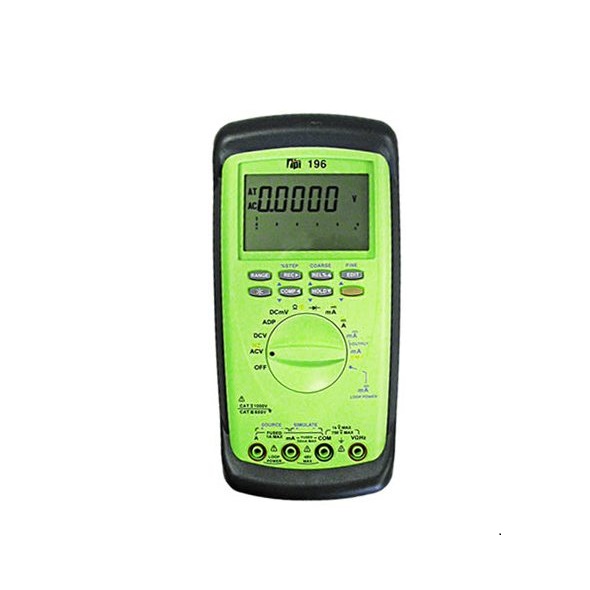

TPI 196 Digital Multimeter

DCV: 1000V / 0.0001mV / ±0.05%

ACV:1000V / 100μμV / ±0.4%

DCA:10A / 0.01μA / ±0.5%

ACA: 1A / 0.0001mA / ±0.75%

Resistance: 50MΩ / 0.01Ω / ±0.05%

Frequency: 500KHz / 0.01Hz / ±0.05%

Display Type: 50,000 count backlit LCD with dual sub displays and analog bargraph

Range Selection: Auto/Manual

Operating Temperature: 32 ~ 113°F (0 ~ 40°C)

Storage Temperature: -4 ~ 140°F (-20 ~ 60°C)

Humidity: 80% non-condensing

Size: 8.3” x 3.7” x 1.9” (210mm x 95mm x 47mm)

Weight: 1.3lbs (570g) without boot/ 1.9lbs (850g) with boot

Battery Type: 9V Alkaline (NEDA 1604)

Battery Life: 50hrs Typical
