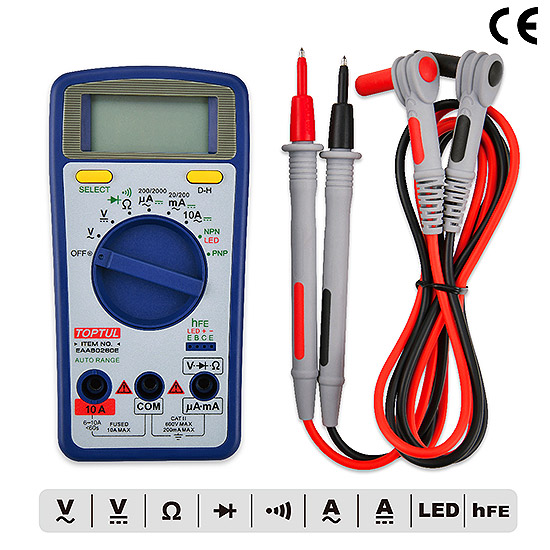

AC Voltage: 2V / 20V / 200V / 600V
DC Voltage: 200mV / 2V / 20V / 200V / 600V
Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
AC / DC Current: 200μA / 2000µA / 20mA / 200mA / 2A / 10A
Diode: 1V
Continuity Check: 200Ω
Transistor (NPN/PNP): 2000 hFE
LED Test: Yes
Operating Environment: 0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing)
Storage Environment: -10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing)
Power Supply: Battery 1.5V AAA x 2 pcs (included)
Fuse Protection: 0.5A / 600V Ø5xL20mm, 10A / 600V Ø6.35xL32mm
Testing Standard: IEC 61010-1 / IEC 61010-2-030 / IEC 61010-2-033
Measurement Category: CAT II 600V / CAT III 300V
Pollution Degree: 2
Dimension: 138mm (L) x 70mm (W) x 32mm (H)
Weight: Approx. 140g
