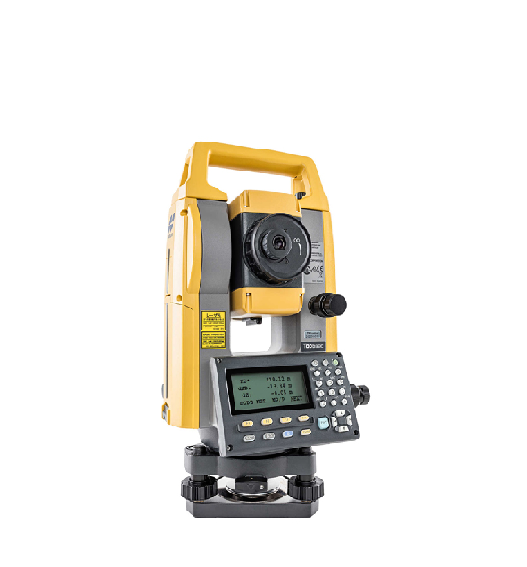

Telescope
- Magnification / Resolving power: 30x / 2.5"
- Others:
+ Length : 171mm (6.7in.),
+ Objective aperture : 45mm (1.8in.) (48mm (1.9in.) forEDM),
+ Image: Erect,
+ Field of view: 1°30' (26m/1,000m),
+ Minimum focus: 1.3m (4.3ft.)
+ Reticle illumination: 5 brightness levels
Angle measurement
- Minimum Display 0.5"/1"(0.0001 / 0.0002gon,0.002 / 0.005mil)
1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
- Accuracy (ISO 17123-3:2001): 2"
- Dual-axis compensator / Dual-axis liquid tilt sensor, working range: ±6'
- Collimation compensation On/Off (selectable)
Distance measurement
- Laser output: 1 Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
- Measuring range (under average conditions)
+ Reflectorless: 3 0.3 to 800m (2,620ft.) / Under good conditions*4 : 1,000m (3,280ft.)
+ Reflective sheet: RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.),
RS10N-K: 1.3 to 100m (4.3 to 320ft.)
+ Mini prism 1.3 to 500m (4.3 to 1,640ft.)
+ One prism 1.3 to 5,000m (4.3 to 16,400ft) / Under good conditions*4 : 6,000m (19,680ft.)
- Minimum Display Fine : 0.0001m (0.001ft. / 1/16in.) / 0.001m (0.005ft. / 1/8in.) (selectable)
Coarse : 0.001m (0.005ft. / 1/8in.) / 0.01m (0.02ft. / 1/2in.) (selectable)
Tracking / Road : 0.01m (0.02ft. / 1/2in.)
- Accuracy: (ISO 17123-4:2001) (D=measuring distance in mm)
+ Reflectorless: (2 + 2ppm x D) mm
+ Reflective sheet: (2 + 2ppm x D) mm
+ Prism: (1.5 + 2ppm x D) mm
- Measuring time:
+ Fine 0.9s (initial 1.5s)
+ Coarse 0.6s (initial 1.3s)
+ Tracking 0.4s (initial 1.3s)
OS, Interface and Data management
- Operating system Linux
- Display / Keyboard: Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 28 keys with backlight
- Control panel location: On both faces
- Trigger key: Yes (right side)
- Data storage:
Internal memory Approx. 50,000 points
Plug-in memory device USB flash memory (max. 32GB)
- Interface: Serial RS-232C, USB2.0 (Type A for USB flash memory)
Bluetooth modem (option):10 Bluetooth Class 1.5, Operating range: up to 10m *11
General
- Guide light*12 Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)
- Laser-pointer*12 Coaxial red laser using EDM beam
- Levels
Graphic 6’ (Inner Circle)
Circular level (on tribrach) 10' / 2mm
- Plummet
Optical Magnification: 3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom
Laser (option) Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm@1.3m, Class 2 laser product
- Dust and water protection / Operating temperature IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
- Size with handle 183(W)x 181(D)x 348(H)mm
- Instrument height 192.5mm from tribrach mounting surface
- Weight with battery & tribrach Approx. 5.3kg (11.7lb)
Power supply
- Battery Li-ion rechargeable battery BDC70
- Operating time (20ºC): BDC70: Approx. 28hours
Standard Package Components
- Main unit
- Battery (BDC70)
- Battery charger (CDC68A)
- Power Cable
- Lens cap
- Lens hood
- Tool pouch
- Precision Screwdriver
- Lens brush
- Hexagonal wrench (1.3 mm/2.5 mm)×2
- Cleaning cloth
- Quick Manual
- CD-ROM (Operation manual)
- Laser caution sign-board
- Carrying case
- Carrying strap
