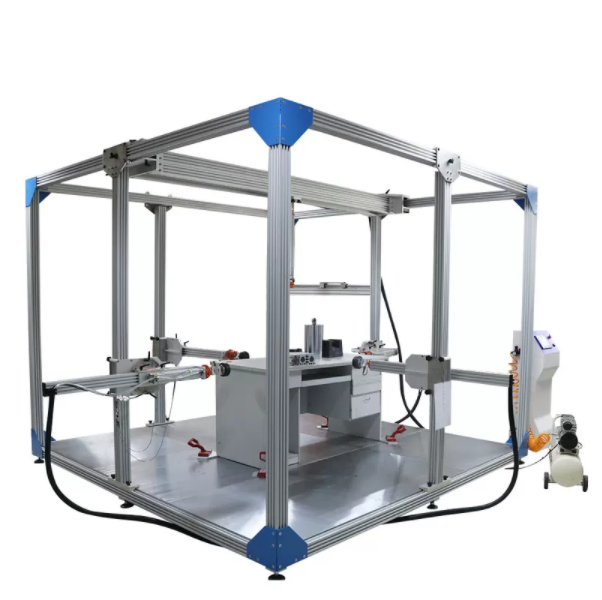

TONYHK TNJ-001 Furniture Mechanical Integrated Test Machine (0~250kg, 0~500kg)

Load: 0~250kg, 0~500kg can be specified.

Loading accuracy: 1/10000

Load precision:

- Static: ±0.5%

- Dynamic force: 0-5%

Stroke: 0~300mm, 0~500mm, 0~800mm can choose cylinder to set

Pause time of each movement: 0.01s~99s can be set

Test speed: 5~30 times per minute can be set

Test number: 0~999.999 times per minute can be set

The use of gas pressure: 8KG/CM2

Available Test the workpiece number in one time: 12pcs (maximum)

Test space: 9*3m(L*W)

Datasheet
