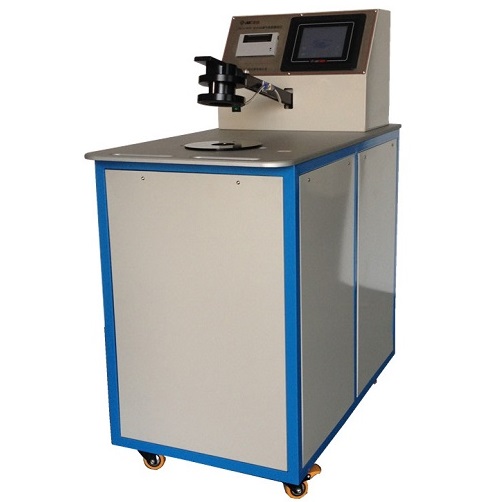

TONYHK HTF-020 Fully Automatic Air Permeability Tester

Operation display: Big LCD display. Touch screen in English version

Measuring unit: mm/s, cfm, cm3/cm2/s, L/m2/s, L/dm2/min, m3/m2/min

Test accuracy better than ±2%

Test pressure: 0-4000Pa

Air permeability: 1～40000mm/s

Measuring error： ≤±2%

Fabric thickness could be: ≤12mm

Test area & Test tip 20 and 38cm² (Standard); 5, 25, 50 and 100cm² (choose to buy)

Collocation micro printer

Power source: 220V±10%, 50Hz.1100W

External dimension: 750x465x1050mm

Nozzle: 8 pcs, automatically changeable by machine

Gross weight/Net weight: 120Kg/95Kg
