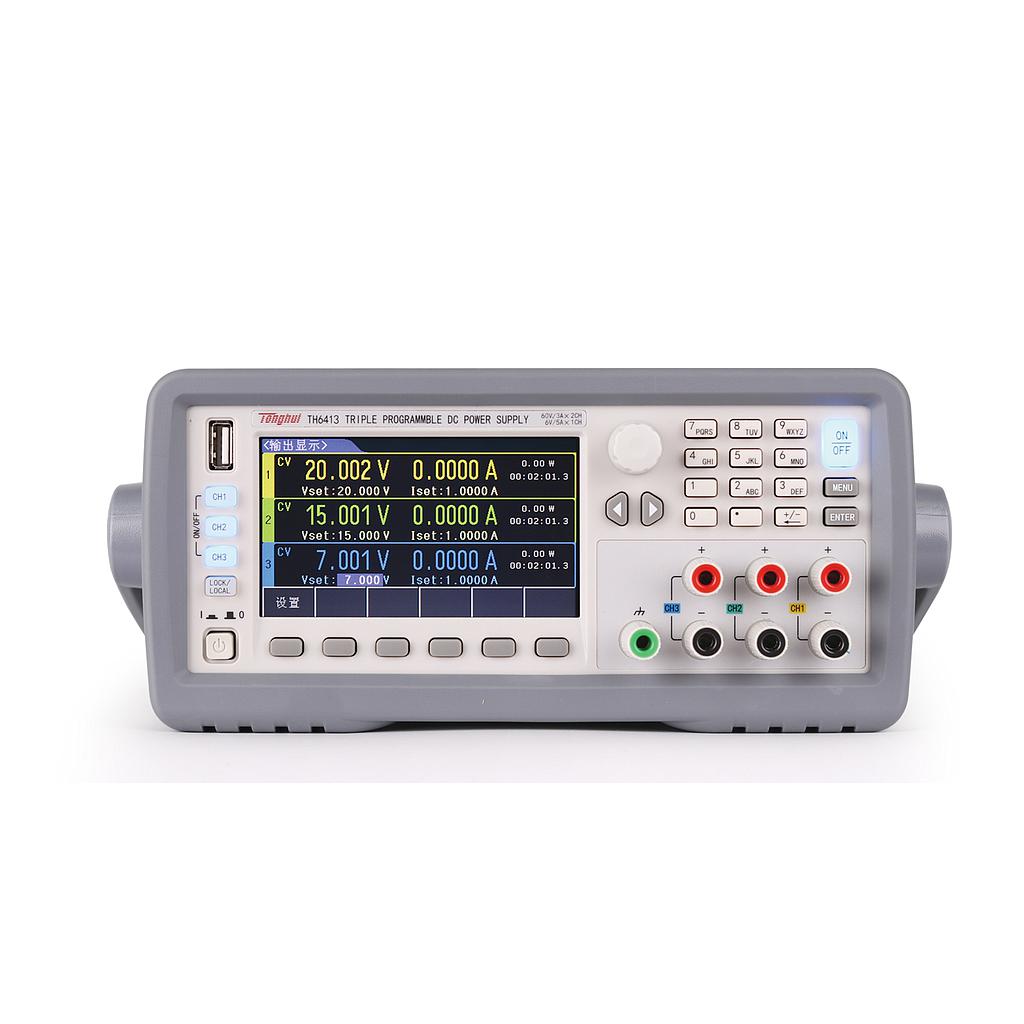

Tonghui TH6413 Triple Programmable DC Power Supply (0-60V; 0-5A)

Rated Output (0℃-40℃):

Channel/Range: Range1,Range2/ Range3

- Voltage: 0-60V/ 0-6V

- Current 0-3A/ 0-5A

- Power: 180W/ 30W

Load regulation ± (% Output + Bias):

- Voltage: ≤0.01% + 3 mV

- Current: ≤0.01% + 3 mA

Power regulation ± (% Output + Bias):

- Voltage: ≤0.01% + 3 mV

- Current: ≤0.01% + 3 mA

Programming resolution:

- Voltage: 1mV

- Current: 0.1mA

Read-back value resolution:

- Voltage: 1mV

- Current: 0.1mA

Year accuracy (25℃± 5℃) ± (% Reading + Bias):

- Programming:

Voltage ≤0.03% + 10 mV

Current ≤0.1%+5mA/ ≤0.1%+8mA

- Readback

Voltage: ≤0.03% + 10 mV

Current: ≤0.1%+5mA/ ≤0.1%+8mA

Ripple and Noise (20Hz-20MHz):

- Normal mode voltage: ≤1mVrms or 4mVp-p

- Normal mode current: ≤4mArms; ≤5mArms

Series and parallel set value accuracy:

- Voltage: ≤0.02% + 10 mV

- Current: ≤0.1% + 30mA

Timer: 0.1 ~ 99999.9 seconds

Memory: 40 groups of settings files / channels
