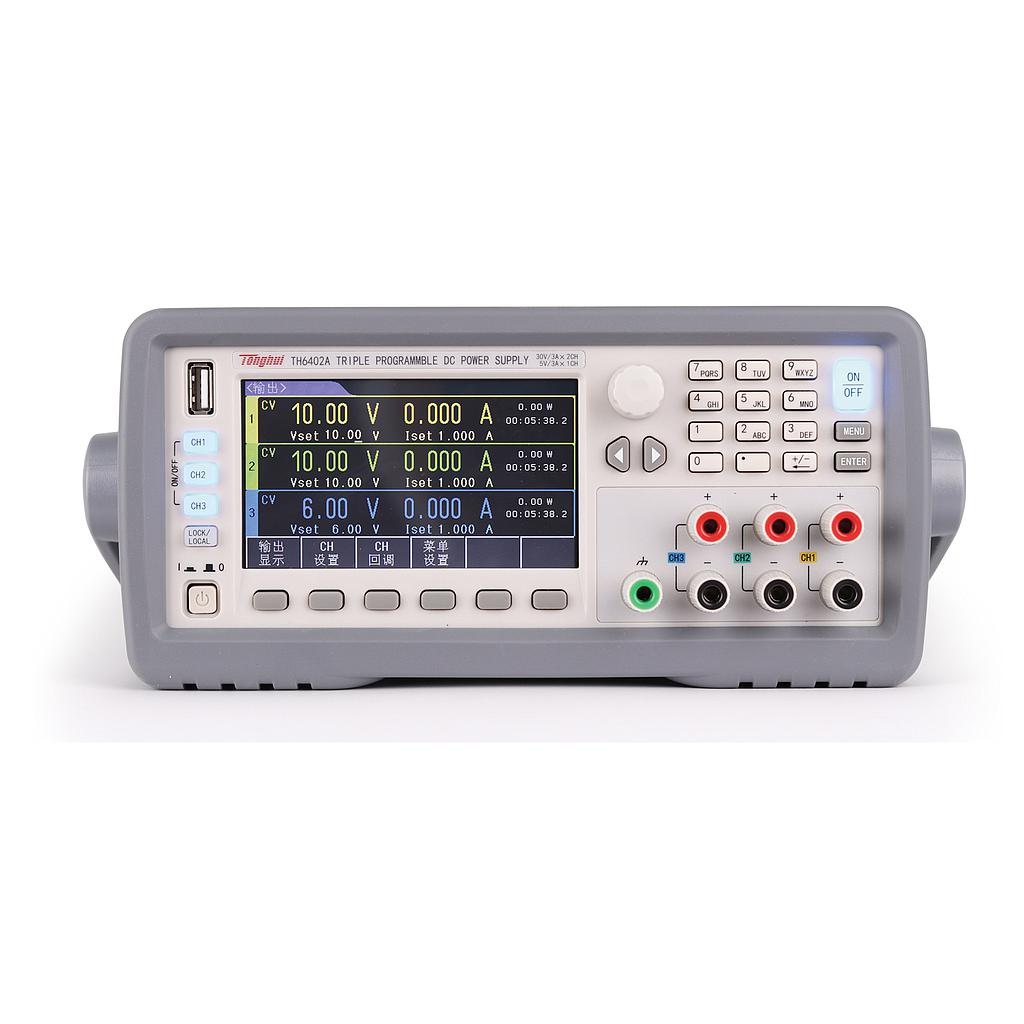

Tonghui TH6402A Triple Programmable DC Power Supply (0-30V; 0-3A)

Rated Output (0℃-40℃):

Channel/Range: Range1,Range2/ Range3

- Voltage: 0-30V/ 0-5V

- Current 0-3A/ 0-3A

- Power: 90W/ 15W

Load regulation ± (% Output + Bias):

- Voltage: ≤0.01% + 3 mV

- Current: ≤0.1% + 3 mA

Power regulation ± (% Output + Bias):

- Voltage: ≤0.01% + 3 mV

- Current: ≤0.1% + 3 mA

Programming resolution:

- Voltage: 10mV

- Current: 1mA

Read-back value resolution:

- Voltage: 10mV

- Current: 1mA

Year accuracy (25℃± 5℃) ± (% Reading + Bias):

- Programming:

Voltage ≤0.05% + 20 mV

Current ≤0.2%+5mA

- Readback

Voltage: ≤0.05% + 20 mV

Current: ≤0.2%+5mA

Ripple and Noise (20Hz-20MHz):

- Normal mode voltage: ≤1mVrms or 3mVp-p

- Normal mode current: ≤3mArms

Series and parallel set value accuracy:

- Voltage: ≤0.02% + 5 mV

- Current: ≤0.1% + 20mA

Timer: 0.1 ~ 99999.9 seconds

Memory: 40 groups of settings files / channels
