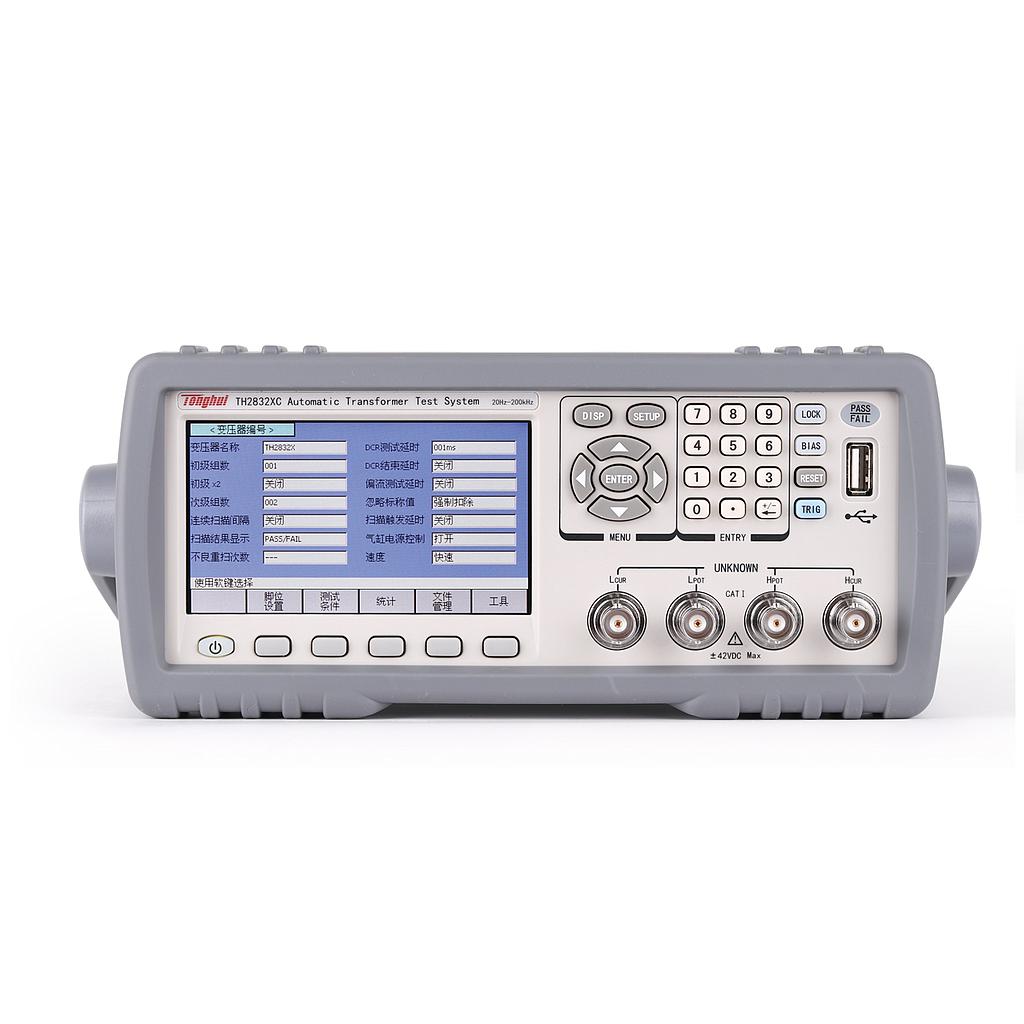

Tonghui TH2832XC Automatic Transformer Test System (20Hz-200kHz)

Number of Test Pin(PIN): 12

Test Frequency: 20Hz-200kHz, 15025 points in total.

Display: 4.3 inch TFT LCD 272*480

Transformer test parameters: Turn Ratio, Turns, Phase, L, C, Lk, Q, ACR, DCR, Balance, Pin Short.

Basic Test Accuracy: DCR、Turn Ratio 0.5%

Signal Source Output Impedance: 30Ω, 100Ω selectable

Test Speed (≥10 kHz): Fast: 40ms, Med: 125ms, Slow: 370ms.

AC Signal Level: 10mV – 2Vrms, 100μA – 20mArms.

DC Bias Voltage Source: 0V – ± 5V, 0mA –±50mA.

Memory: 100 groups of LCRZ setting file,100 groups of transformer scan set file, 10 groups of gif file
