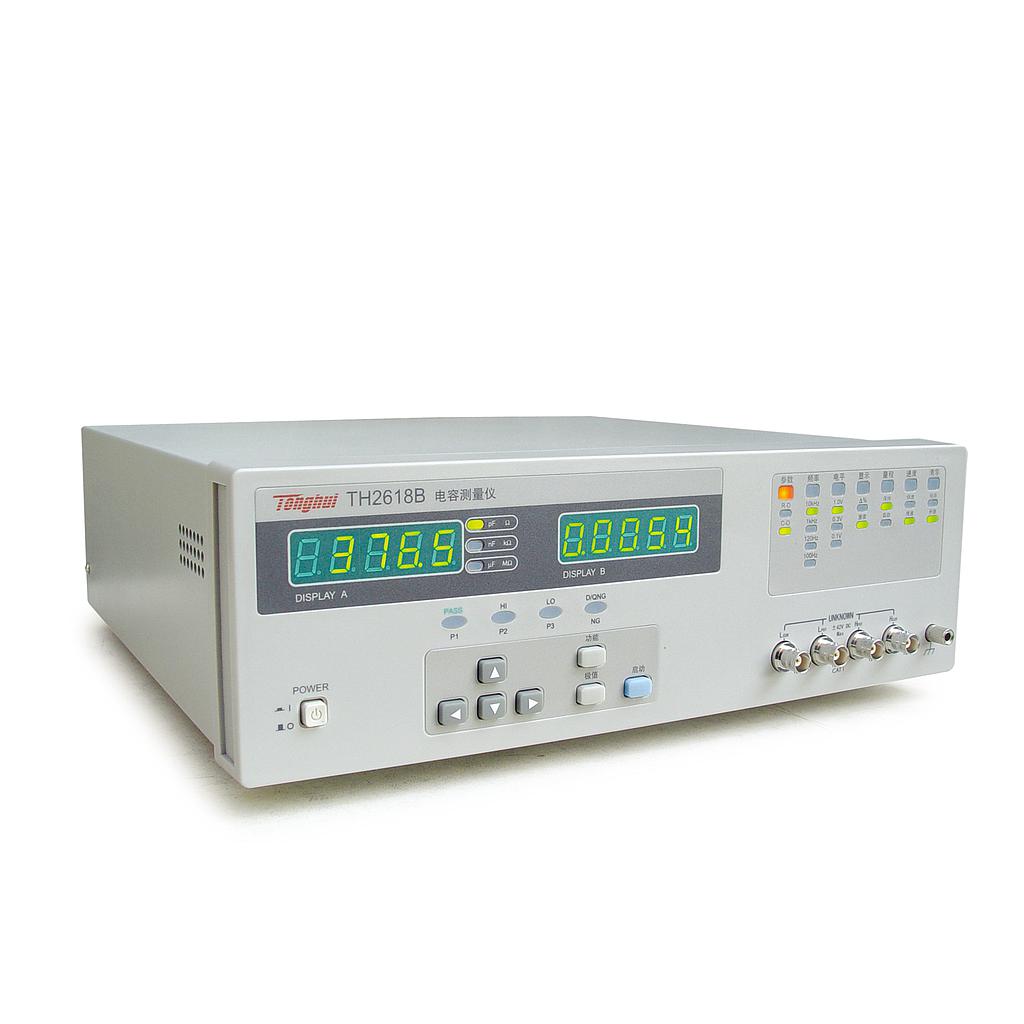

Tonghui TH2618B Capacitance Meter (100Hz~10kHz)

Test parameters: C-D, R-D

Basic accuracy: 0.1%

Equivalent circuit: Series and Parallel

Ranging Mode: Auto and Hold

Trigger Mode: Internal, Manual and External

Measuring speed(meas/sec): Fast: 15, Slow: 4.5

Measurement Terminals: 5 Terminals

Display Mode: Direct, Δ%

Test Frequency: 100Hz,120Hz,1kHz, 10kHz

Output impedance: 30 Ω , 100 Ω

Test level: 0.1Vrms, 0.3Vrms, 1Vrms

Display Range:

- R: 0.0001 Ω — 99999 MΩ

- C: 0.01 pF — 99999μ F

- D: 0.0001 — 9.999

- Δ%: -9999% — 9999%

Interface: RS-232C, Handler

Operating Temperature and Humidity: 0°C−40°C, ≤90%RH

Power Requirements:

- Voltage: 198V−242V

- Frequency: 47.5Hz−52.5Hz

Power consumption: ≤ 20 VA

Dimensions (W×H×D): 350mm×110mm×340mm

Weight: 3.5kg Approx

Instrument Accessories

TH26001 4 terminal test fixture

TH26004-1 4 terminal Kelvin test clip leads

TH26010 Gilded shorting plate

Options

TH26047 4-terminal test fixture

TH26048 4-terminal test fixture

TH26005A 4 Terminal test fixture

TH26006 Axial lead component test module (used with TH26005A)

TH26008A SMD component test fixture

TH26009B SMD Kelvin test tweezers

TH26011A 4-terminal Kelvin test clip leads

TH12012 RS232C control software
