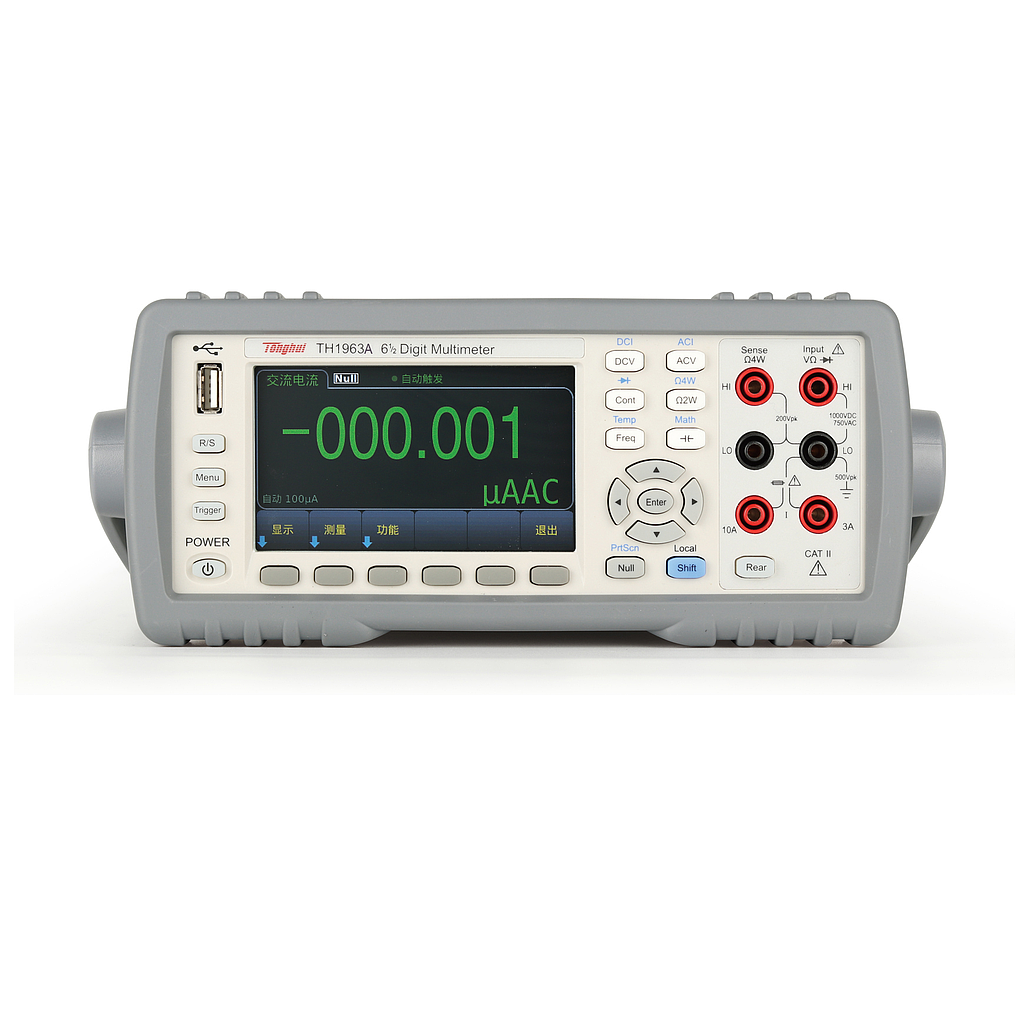

Monitor: 4.3-inch LCD color display
Display Digits: 1199999 words reading
Measurement Parameters: DC voltage, AC voltage, DC current, AC current, DC resistance, capacitance, frequency, conduction, diode, temperature
Display Mode: Direct reading, histogram, bar chart, trend chart
Measuring Speed: Maximum 1000 times/s
Mathematical Functions: Clear function, minimum /maximum/average/standard deviation, dB, dBm
General Functions:
+ Range: Trigger method
+ Automatic, Manual: LOCAL: AUTO/SINGLE/EXTREMOTE: IMMEDIATE/BUS/EXT
+ Reading Hold Have: Limit measurement HI, Lo and IN (PASS), with beep
Technical Indicators: Uncertainty expressed as: ±(% reading + % range), TCAL = 25°C
Parameter:
Dc Voltage: 100.0000mV-1000.000V (TH1963/TH1963A)
True Rms Ac Voltage: 100.000mV-750.000V
Dc Resistance: 10Ω- 100MΩ, test current: 10mA-500nA
Dc Current: 100 μA-10mA; 100mA; 1A; 3A; 10A
Ac Current: 100 μA–1A; 3A; 10A
Frequency: 3Hz-10Hz; 10Hz-100Hz; 100Hz-1kHz; 100Hz-300kHz; Square Wave
Diode: 5V, test current: 1mA
Conductivity: 1kΩ, test current: 1mA
Capacitance: 1.0000nF; 10.000nF-1.0000mF; 10.000mF
Temperature: PT100(DIN/IEC751); 5kΩ Thermistor
