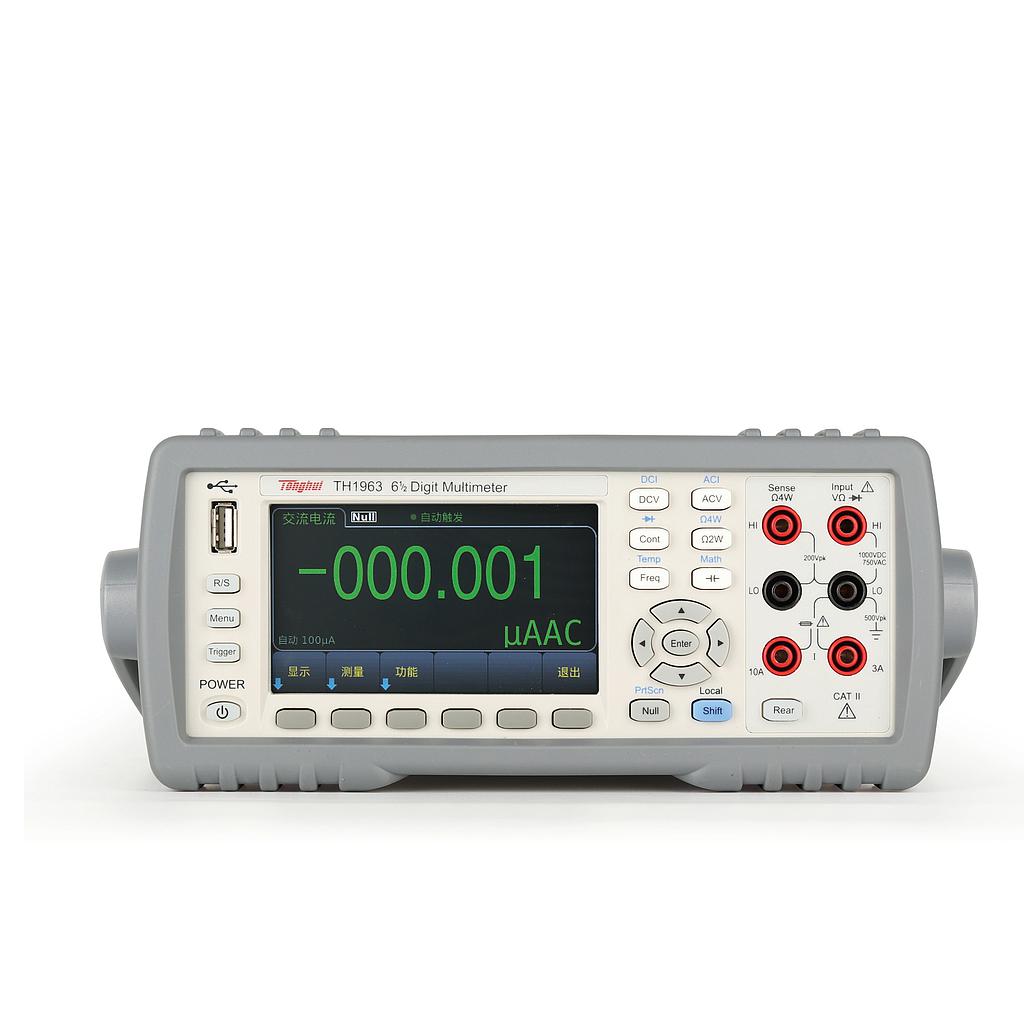

Tonghui TH1963 Digital Multimeter (AC: 750V, 10A; DC: 1000V, 10A)

Display: 4.3-inch LCD color display

Display digits: 1199999 digits reading

Measurement parameters: DC voltage, AC voltage, DC current, AC current, DC resistance, capacitance, frequency, breakover, diode, temperature

Display mode: Direct reading, histogram, bar graph, trend chart

Measurement speed: Up to 1000 times / s

DC Voltage: 100.0000 mV - 1000.000V

True RMS AC Voltage: 100.000mV - 750.000V

DC Resistance: 10Ω-100MΩ, Test current:10mA - 500nA

DC Current: 100uA - 100mA; 1A; 3A; 10A

AC Current: 100μA - 1A; 3A; 10A

Frequency: 3Hz - 10Hz; 10Hz - 100Hz; 100Hz - 1MHz; Square wave

Diode: 5V, Test current:1mA

Breakover: 1kΩ, Test current:1mA

Capacitance: 1.0000nF; 10.000nF - 1.0000mF; 10.000mF

Temperature:

- PT100 (DIN/ IEC 751): ± 0.05°C

- 5 kΩ Thermistor: ± 0.10°C
