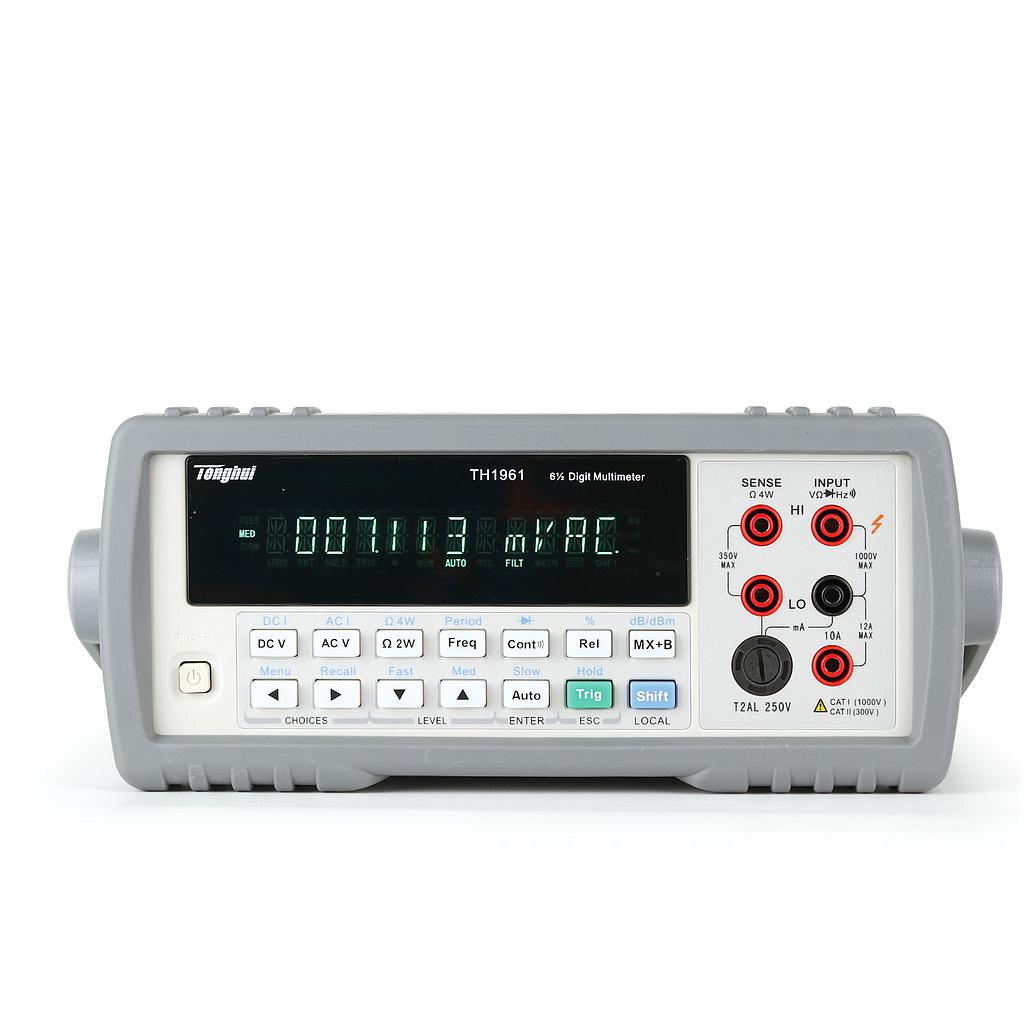

6 1/2 digit display(1,199,999 counts)
Measurement Condition
Calibration Cycle: one year
Operation Humidity:18°C−28°C, ≤90%RH; when resistor is 10M and 100M, ≤70%RH
Warming up Time: 30 min
Accuracy is expressed as: +/- (% of reading + % of range)
Temperature coefficient: 0°C--18°C & 28°C--40°C,+0.1%×accuracy /°C
Following is the specification at slow mode, others please refer the operation manual.
DC Voltage range: 100mV; 1V; 10V; 100V; 1000V
DC Current range: 10mA; 100mA; 1A; 10A
AC Voltage range: 100mV; 1V; 10V; 100V; 750V
AC current range: 10mA/1A/10A
Ω 2W/Ω 4W range: 100 Ω; 1 kΩ; 10 kΩ;100 kΩ; 1 MΩ; 10 MΩ; 100 MΩ
Frequency Range: 5Hz~10 Hz; 10Hz~100Hz; 100Hz~100 kHz; 100k~1.1MHz
Working temperature & humidity: 0°C-40°C, ≤90%RH
Power supply:
- Voltage: 198V-242VAC,99V-121VAC
- Frequency: 47.5Hz-63Hz
Power consumption: ≤ 10 VA
Dimensions (W×H×D): 277mmx115mmx340mm
Weight: Approx. 2.2 kg
Instrument Accessories
TH26036 test leads one pair (black and red)
Power cord
Options
TH10003 GPIB interface board
TH12023 RS232C control software
TH26041 Glided shorting plate
TH26039 4 terminal Kelvin test clip
TH26040 SMD component test clip
TH12022 Accuracy Calibration software
