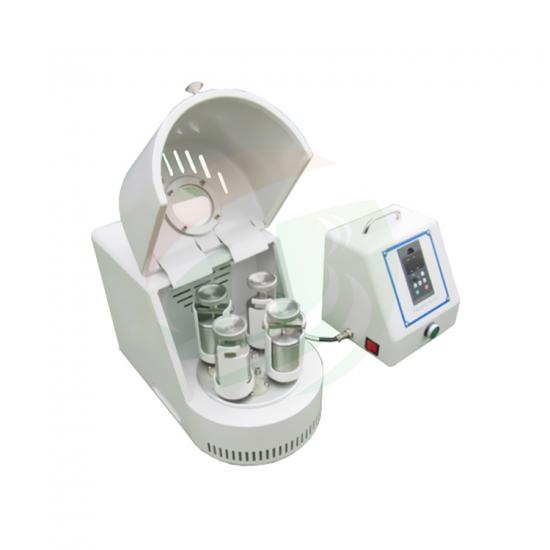

TOB TOB-XQM-0.2 Battery Material Planetary Ball Mill (0.2L,120-1160r/min)

Grinding tank volume (L): 50ml*4

Grinding tank material: According to requirements

Grinding media: According to requirements

Maximum loading per tank: Material and grinding medium does not exceed two-thirds of the volume

Feeding material size: Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge material size: Min0.1um

Rotating speed: Revolution 60-580r / min,Rotation 120-1160 r / min

Speed ratio (revolution: rotation): 1:2

Speed mode: Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse

Transfer method: Gear drive

Working Voltage: 220V

Motor power and variable frequency power: 0.25Kw

Way of working: Two or four cans work at the same time

Maximum continuous operating time: 72hours

Programmable control (electronic monitoring): Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run（0-999min）and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.
