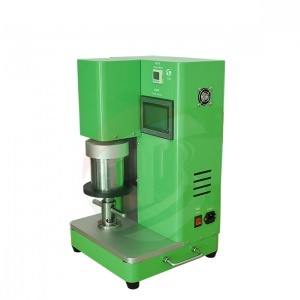

TOB TOB-XJB-500 Compact Dual-Shaft Lab Scale Planetary Vacuum Mixer (500ml; max 600 rpm)

Voltage: AC220V 50HZ/ 110V 60HZ

Power: 200W

Stirring speed: MAX600 rpm

Multi segment function: There segment speed can be set

Fitting volume: 500ml stainless steel vacuum mixing tank

Stirring time: 0~600min can be set

Overall size(L*W*H) : About 330m×320mm×570mm

Net Weight: About 35kg

Remark: 1 Built in vacuum pump, vacuum value -0.08Mpa.

2 Standard double screw propeller, others according to the design of tank.

Datasheet

Features

1.Vacuum environment, can eliminate the bubbles generated in the mixing process effectively ,with vacuum system.

2.Standard equip of biaxial planetary stirring structure, screw impeller, according to the size of mixing tank to configure the different mixing shafts and combination .

3.Reverse and corotation mixing function design , can achieve high viscosity slurry make high speed mixing,have good mixing uniformity.

4.Multi speed operation can be carried out,you can set the speed and time of each stirring .

5.Bracket design, easy to operate, to ensure the safety of the vacuum mixing process

6.Small size, can save space

7.Exquisite appearance, with three-dimensional geometric design, simple and beautiful .
