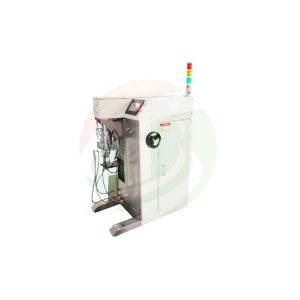

TOB TOB-SS-56-12 High Speed Mixer For Lab (13000-18400rpm)

Source voltage:AC 380v, 3 phase, 75kw

Machine capacity: 120ml

Single batch processing quantity: 100ml

Continuous processing quantity:200ml/min

Mixing mode: Stator high shear mode

Turnover number: 13000-18400rpm,Frequency converter speed control

Mixing linear velocity:50m/sec

Lifting and turning: The handwheel manual lifting, travel 200mm*2

Mixer container

Down incoming container:

Flat cylinder, Inner diameter 56mm* outside diameter 77mm * height 63mm,

SUS304 Material

Upper discharging container:

Opening barrel, Inner diameter 56mm* outside diameter 77mm * height 50mm,

SUS304 Material

Dimension (H*W*D): 1370 * 580 * 950mm
