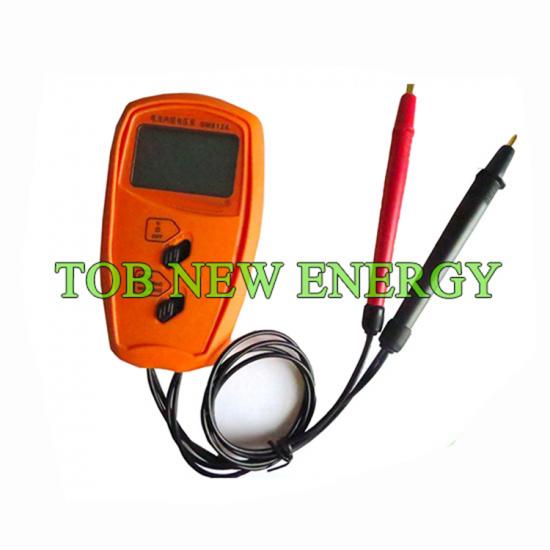

TOB TOB-SM8124 Portable Battery Resistance Voltage Tester (200V,20Ω)

Voltage testing range: 0-1.999V, 2-19.99V, 20-199.9V

Voltage resolution ratio: 1mV, 10mV, 100mV

Inner resistance testing range: 0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ

Accuracy: 0.1mΩ, 1mΩ, 10mΩ

Operating temperature: -10-40℃

Suitable battery

Lithium battery, lithium pouch cell(Lithium polymer battery),

Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.

Structure

LCD display testing results

Simple operation with Button press

Dimension(L*W*H): 130*72*30mm

Weight: 200g

Datasheet

Notice

This machine can not test battery with voltage more than 200V,

Please don’t test battery more than 200V. It will damage the machine.

Guarantee that the battery positive and negative connection is right.
