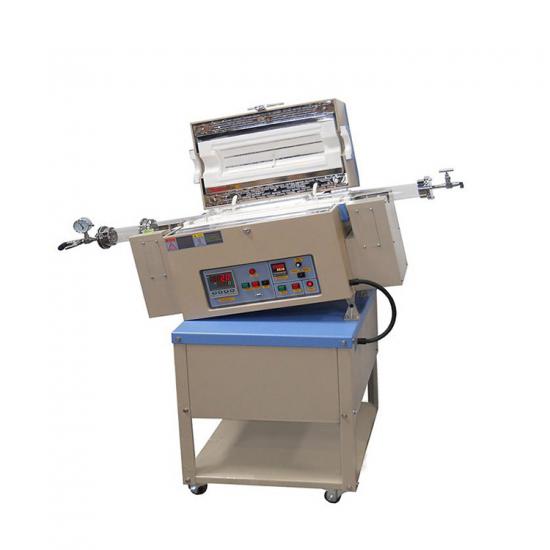

TOB TOB-SHYT-1200X Rotary Furnace (1200℃,30°,4.5x10-2 torr)

Furnace Construction

Double shell casing with three cooling fans

High purity Alumina fibrous insulation for max. energy saving

Gear DC motor drives quartz tube with variable speed 0 - 7 RPM

The furnace can be tilted up to 35° by electric lift

Split cover enable faster cooling and easy operation

Heating Zone length: One zone: 16" (400 mm)

Constant temperature zone: 120 mm within +/-1°C

Gas Fittings

Inlet Fitting: Elbow Push-in connector for 6mm O.D tube;

Outlet Fitting: Elbow Push-in connector for 12mm O.D tube

Max. Working Temperature

1100°C for continuously

1200°C Max for < 2 hours

Temperature Controller: 30 segments programmable PID digital temperature controller

Rotating Time & Speed Controller

Continuous Mode: The tube will be continuously rotated if the rotating mode switch is set on “Continuous Operation”

Intermittent Mode: “Intermittent Operation” allows you use the time controller to program the desired rotating and dwell time

Tube Rotating Speed: 0~7 RPM variable

Temperature Uniformity: +/- 1°C in heating Zone

Tube rotating Speed: 0 - 7 RPM variable

Furnace tilt angle: 0 - 30°

Max. Vacuum level: 4.5x10-2 torr (<0.1mtorr/s leaking rate if close all the valves to airtight the tube chamber)

Production yield: 2 kg per batch

Power: 2.5 KW Max

Voltage: 110V - 240V single phase (20 A Breaker required)

Product net weight: 100kg

Dimensions: 1520mm(L) x 600mm(W) x 1200mm(H)

Shipping dimensions: 49"(L) x 40"(W) x 70"(H)

Shipping weight: 500 lbs

Warning: Only using under vacuum and low pressure < 0.12 MPa (absolute pressure)

* Vacuum pressures may only be safely used up to 1000°C
