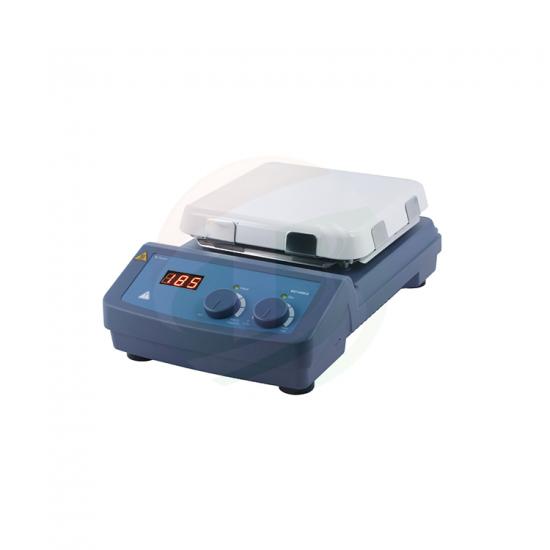

TOB TOB-MS7-H550-S Heating Magnetic Stirring Apparatus (0-1500rpm, 550°C)

Work plate Dimension [W x D] : 184x184mm (7 inch)

Work plate material: Glass ceramic

Motor type: Shaded pole motor

Motor rating input: 15W

Motor rating output: 1.5W

Power: 1030W

Heating output: 1000W

Voltage: 100-120/200-240V 50/60Hz

Stirring positions: 1

Max. stirring quantity, [H2O]: 10L

Max. magnetic bar[length]: 80mm

Speed range: 0-1500rpm

Speed display: Scale

Temperature display: LED

Heating temperature range: Room temp.-550°C, increment 5°C

Temperature control accuracy: ±10°C

Overheating protection: 580°C

Temperature display accuracy: ±1°C

External temperature sensor: PT1000 (accuracy ±0.2)

"Hot" warning: 50°C

Protection class: IP21

Dimension [WxDxH]: 215x360x112mm

Weight: 4.5kg

Permissible ambient temperature and humidity: 5-40°C, 80%RH
