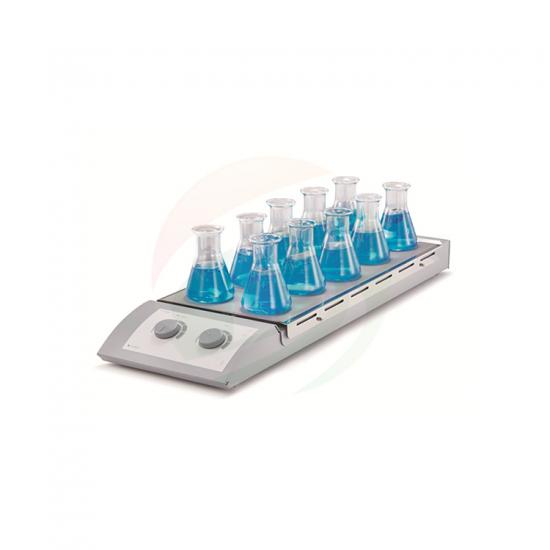

TOB TOB-MS-H-S10 10 Channel Hot Plate Magnetic Stirrer Mixer (1100rpm,120°C)

Work plate Dimension: 180x450mm

Work plate material: Stainless steel with silicone

Motor type: Brushless DC motor

Motor rating input: 12W

Motor rating output: 4W

Power: 490W

Heating output: 470W

Voltage: 100-120/200-240V 50/60Hz

Stirring positions: 10

Max. stirring quantity[H2O]: 0.4Lx10

Max. magnetic bar[length]: 40mm

Speed range: 0-1100rpm

Speed display: scale

Temperature display: scale

Heating temperature range: Room temp.-120°C

Over heat Protection: 140°C

Temperature display accuracy: IP42

Dimension [W x D x H]: 182×622×65mm

Weight: 3.2kg

Permissible ambient temperature and humidity: 5-40℃ 80%RH
