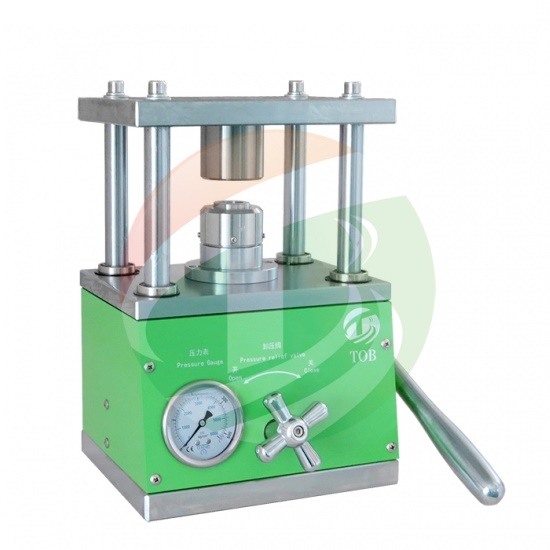

TOB TOB-MR-120/CM Hydraulic Manual Coin Cell Crimping Machine (200kg/cm2)

Standard Crimping Die

One set of crimping die for CR2032,CR2025,and CR2016

Optional die available from product option for crimping CR2325,CR2450,AG3,AG5

PTFE Anti-Corrosion Core prevents coin cells from being short circuited

Rocker Pressure: < 6kg

Max Pressure: 200 kg/cm2 (The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)

Working Pressure: 80-100 kg/cm2

Dimension(L*W*H): 232 * 170 * 330mm

Weight: 28kg

Shipping Weight: 35kg

Delivery

01 set x Hydraulic Crimping Machine TOB-MR-120

01 set x CR20XX coin cell crimping die or disassemble die

01 book x English Operating Manual

01 set x SocketHeadWrench

Datasheet

Advantages

The lower die with high precision positioning ring spacing, control batteryseal height

The upper die is provided with a sealing cup inner screw spring mechanism,ensure in case the battery sealing clamp can not be removed,only the top screw clockwise and the button battery out.

By using aluminum alloy and high strength steel, surface after the environmental protection electroplating processing will never  rust
