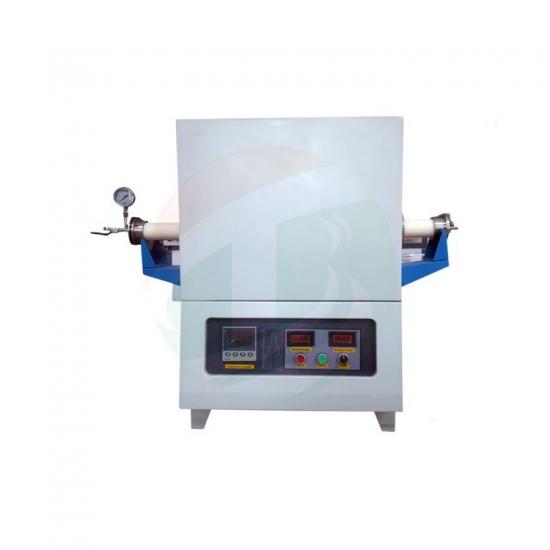

TOB TOB-GL1400-100 Vacuum Tube Furnace (0-1400℃,200pa)

Voltage AC: AC220V, 50HZ

Heating Power: 6KW

Furnace tube size: 100x1000mm(out diameter*length)

Furnace tube material: Corundum tube

Heating Zone: 300mm

Constant Temperature Zone: 150mm

Max working Temperature: 1400℃

Long-term working temperature: 1300℃

Heating unit: Silicon carbon rod

Heating Rate: 1-20 ℃ / min adjustable

Suggested heating rate: 3 ℃ / min temperature rise rate

Temperature control precision: ±1℃

Passable atmosphere: Co2,Nitrogen, argon, etc.

Temperature measuring elements and temperature measuring range: S thermocouple, temperature range 0-1400 ℃

Original electric appliance: Partial selection of Schneider imported brands

Instrument control: Yudian GP518P

Sealing Component: Custom seal flange

Vacuum: 200pa Digital vacuum gauge

Flowmeter(optional): 50-500ml/min

Control Method: Control mode: Adopt automatic control system

Programming curve segment number: The 31 paragraph can be adjusted to reduce the unnecessary trouble caused by artificial timing.

Display accuracy: ±1℃

Digital display: Measuring temperature and setting temperature double display

Control characteristics: Control system modular structure

Air cooling system: The fan impeller is mounted directly on the bottom of the double furnace shell and assembled with the control system.
