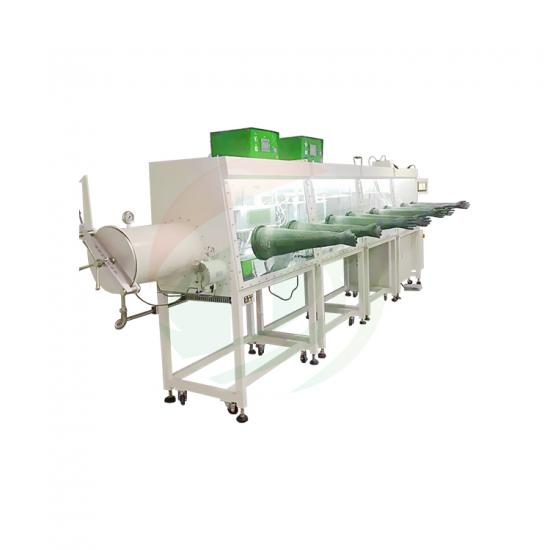

TOB TOB-GB-4880-S Four Workstation Glove Box For Lithium Battery (+/-10 ~ +/-12mbar, 12m3/h)

Glove Box

Dimensions: 4880mm wide x 750mm deep x 900mm high,.

Innersurface: stainless steel

Outer surface: spray paint, white

Material for Box:3mm thick. 304 stainless steel, acid resistant

Windows - Slanted window, transparent tempered safety glass, thickness 8 mm, protective film.

Glove Ports – Material is hard aluminum alloy, O-ring seal.

Gloves - Butyl - 8” cuff diameter -0.4” Thick - 32” Length

Dust Filter - 0.3 µm - 1 gas inlet and 1 gas outlet filter

Shelves - Stainless -adjustable height.

External Fluorescent Lights -LED lights, mounted in front of each glass window

Interface: 16 spare interfaces, DN 40 KF.

Main Antechamber

One - Large Antechamber - 304 Stainless Steel - 360mm(14.2”)Diam. - 600mm(23.6”) Long (R or L)

Surface: the inner surface is polished and the outer surface is painted (white)

Sliding Tray on Stainless304

Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism

Pressure gauge: analog display

Control: Solenoid valve touch screen automatic operation

Mini Antechamber

One - Mini Antechamber - 304 Stainless Steel - 150mm(5.9”) Diam. - 300mm(11.8”) Long (R or L)

Surface: the inner surface is brushed and the outer surface is painted (white)

Door: double door with moving sliding plate, press-button opening method

Pressure gauge: analog display

Manual Operation via Hand Valve

Gas Purification

Function:Removal of H2O and O2.

Container material: 304 stainless steel.

Purification material: copper catalyst: 9 kg; molecular sieve: 9kg

Purification capacity: oxygen removal: 100L; water removal: 4Kg

Water oxygen index: less than 1ppm

Circulatory system

Working gas: nitrogen, argon, helium

Cycle capacity: integrated fan flow 145m3 / h

Valve

Main valve: DN 40 KF, electric dynamic angle valve

Control valve: electromagnetic integrated valve

Control System

Function: including self-diagnosis, power-off self-starting feature, pressure control and adaptive function; automatic control, cycle control, password protection; unit control adopts Siemens PLC touch screen.

Pressure control: The pressure working pressure of the control box and transition chamber can be set freely within +/- 10 mbar, and the automatic protection is beyond +/- 12 mbar.

Pedal: Controls the pressure of the cabinet for easy operation and step-down.

PLC (Programmable Logic Controller).

Vacuum Pump: Specification: 12m3 / h, rotary vane pump, with oil mist filter, gas vibration control.

Display system: Using Siemens PLC touch screen smart 700, display operating status, cabinet pressure, system records, etc.

Oxygen analyzer

Measuring range: 0 ~ 1000ppm

The ZrO2 sensor avoids the problem that the fuel cell has a short life and cannot be exposed to the air

Water analyzer: Measuring range: 0～500ppm platinum electrode structure

Increase the organic solvent adsorber: Dimensions: diameter 238mm, height 407mm, material 3mm thick 304 stainless steel. Installed on the circulation line.
