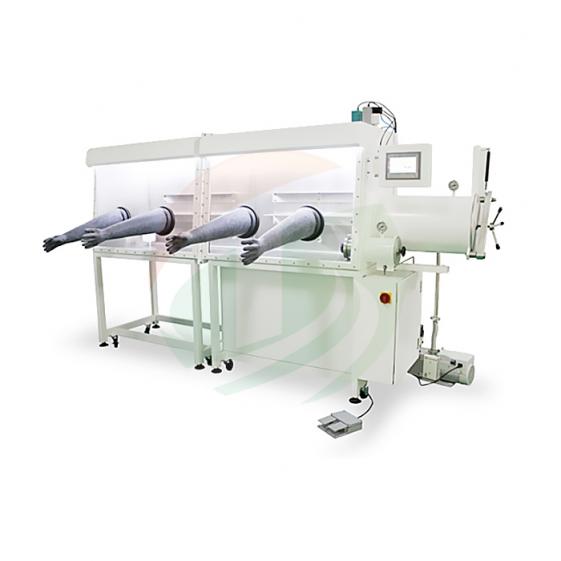

TOB TOB-GB-2440-S Side By Side Dual Workstation Glove Box (+/-10 ~ +/-12mbar, 8m3/h)

Glove Box

Dimensions: 2440(96”)mm wide x 750)mm(29.5” deep x 900mm (35.4”)high, Stand 900mm(35.4”) high

Material for Box:3mm thick. 304 stainless steel, acid resistant

Windows - Safety Glass

Glove Ports – POM (Polyoxymethylen Plastic) 220mm(8.7”) diameter - Double O-ring sealed on each glove.

Gloves - Butyl - 8” cuff diameter - .015” Thick - 32” Length

Dust Filter - 0.3 µm - 1 gas inlet and 1 gas outlet filter

Shelves - Stainless - 2 layers - Mounted inside.

External Fluorescent Lights - 2 sets

One - Electric Feed-through - Seven- Blind Flanges KF 40

Main Antechamber

One - Large Antechamber - 304 Stainless Steel - 360mm(14.2”)Diam. - 600mm(23.6”) Long (R or L)

Sliding Tray on Stainless drawer slides

Spindle Lock Door with Vertical Operation

Touch Screen - Automatic via Solenoid

Mini Antechamber

One - Mini Antechamber - 304 Stainless Steel - 150mm(5.9”) Diam. - 300mm(11.8”) Long (R or L)

Screw Lock Door

Manual Operation via Hand Valve

Gas Purification

Removal of H2O and O2.

Gas Container - 304 Stainless Steel

Absorber Unit: Copper Catalyst: 4.5Kg - Molecular Sieve: 4.5Kg

Attainable Purity: H2O - Less than 1ppm; O2 Less than 1ppm

Capsulated Blower - 90 cubic meters/hour with frequency converter

Regeneration - PLC controls all processes including heating, filling mixed gas (working gas / 5-10%H2 mixture), etc.

System Control

PLC (Programmable Logic Controller).

Siemens 7 inch color touch screen

The pressure can be set between +/- 10mbar. If the pressure goes over +/- 12mbar the system with protect itself automatically.

Vacuum Pump: Rotary Vane Pump. Capacity is 8 cubic meters/hour. Dual Stage portion with Ultimate vacuum at 3 x 10-2mbar

Organic solvent adsorber: Size: placed in the box, diameter 136mm, height 256mm, filled with 2kg activated carbon, can quickly change the material, and does not destroy the high purity atmosphere.

Increase the organic solvent adsorption device

Located in a independent purification cabinet

Dimensions: diameter 237mm, height 407mm, thickness 0.3mm

Material: 304 stainless steel

Filled with 9kg high-performance activated carbon
