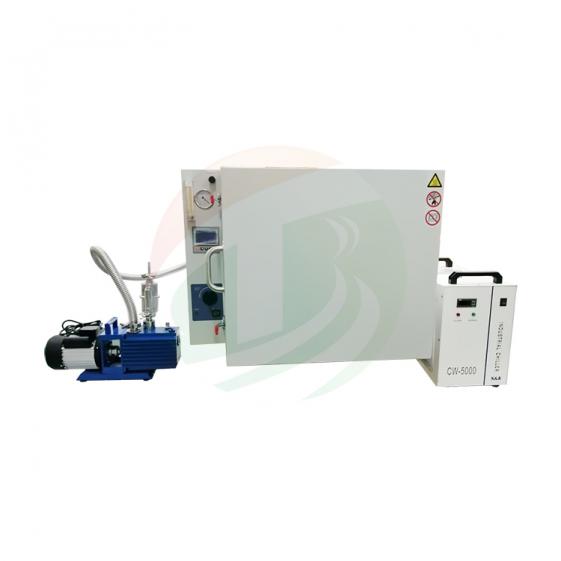

TOB TOB-DZF-6050-HT High Temperature Vacuum Oven (53L 500℃)

Voltage: 220V AC 50/60HZ (Power cable is included w/o plug)

Power: 3600W

TemperatureRange: RT + 50～500℃

Temperaturefluctuation: ± 1℃

Shelf No.: 2

Recommended Heating Rates

10 ºC/min: 0ºC - 100ºC

7 ºC/min: 100ºC - 200ºC

7 ºC/min: 200ºC - 300ºC

3.5 ºC/min: 300ºC - 400ºC

2.3 ºC/min: 400ºC - 450ºC

0.4 ºC/min: 450ºC - 480ºC

0.2 ºC/min: 480ºC - 500ºC

Chamber dimensions: 415 mm x 345 mm x 370 mm ( 16.3 x 13.5 x 14.5", 53 Liter )

Temperature Controller:

30 segments programmable

Built-in over-temperature protection

+/- 5°C accuracy

Gas flowing/purging

A precise flow meter is installed in the front panel which ranges from 500 ~ 5000ml/min.

The gas is able to be continuously flowing into the chamber at a constant flow rate defined by user during operation.

The oven can be purged by inert gas before operation.

Water Cooling

One digital temperature controlled recirculating water chiller is included.

Refrigeration range: 5~35°C

Flowing Rate: 13L/min Suggest using anti-corrosion coolant (available for auto-part store) to achieve best water cooling.

The water cooling jacket is built inside the oven door.

Vacuum Pump

One rotary vane vacuum pump with exhaust filter, bellows and KF-25 inlet is included.

Vacuum level of oven after pumping < 133pa (2 torr)

Power: 0.4KW / 0.37KW

Packing size Oven: 100 * 94 * 90cm

Vacuum pump: 65 * 27 * 60cm

Water Chiller: 69 * 42 * 61cm
