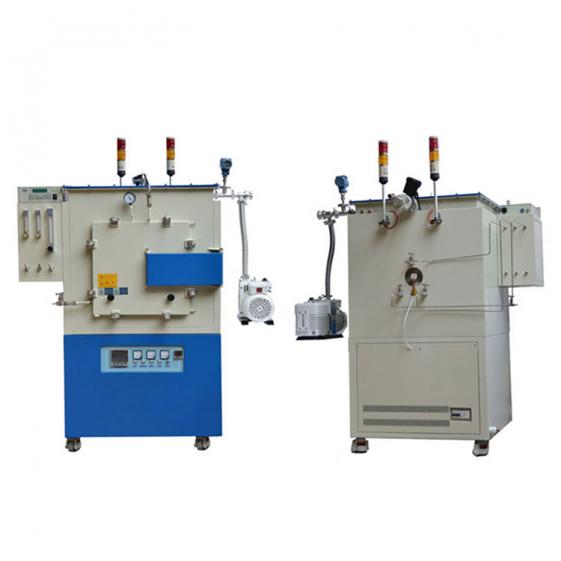

TOB TOB-DSP-VF17Q-II Vacuum Atmosphere Furnace Of Hydrogen (1700℃,8KW,≤100Pa,220V)

Power: 8KW

Furnace tube size(mm): 300X200X200

Dimension: 600X610X860

Power supply voltage: 220V

Phase number: Single-phase

Heating element: 1800 type Molybdenum Wire

Temperature control mode: FP93 temperature control (from Japan)

Control accuracy: +/- 1 ℃

Triggers

1.Phase trigger (with soft start and current limiting function)

2.Current limiting function: furnace transformer secondary current through the post is limited to 160A,

3.Soft-start function

SCR: 106 / 16E Germany Semikron

Max temperature: 1700℃

Rated temperature: 1650 ℃

Vacuum degree in cold state: ≤100Pa

Heating rate: ≤20 ℃ / Min (available upon request modification)

Recommended heating rate: ≤10 ℃ / Min

Thermocouple Type: Type B

Certification: CE

Surrounding surface temperature: ≤45℃

Maximum temperature use in a variety of atmosphere

AtmosphereMax temperature

He,Ar,Ne1700℃

H2 (70%), N2 (30%)1700℃

Mixed gas1700℃

H21700℃

He, Ar, Ne and H21700℃

A mixed gas,1700℃

H2 may be any content1700℃
