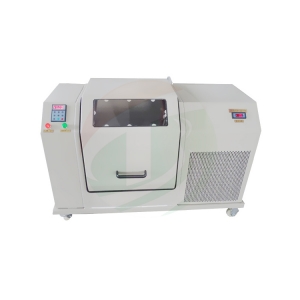

TOB TOB-DSP-LT01 Low Temperature Planetary Ball Milling Machine (220V,0～265R/min)

Power: 220V 50HZ 4KW

Display: LED display, and can display ball mill speed

Transmission: Gear transmission

Milling to achieve the

lowest temperature environment: -20 ° C

Low temperature control accuracy: ±1 ° C

Way of working: Two or four tank work simultaneously

Max sample loading capacity: Two-thirds of the milling tank volume

Abrasive way

Milling under dry or wet

Stainless steel vacuum tank can milling under inflate or vacuum conditions

Stainless steel vacuum sleeve, you can put other common cans (for example: agate, zirconia, PTFE, etc.) trap, so that in agate, zirconia, PTFE, etc. jar, milling under inflated or vacuum conditions

Feed size: Soil material ≤10mm, other material ≤3mm

Discharge size: Mix 0.1um

Speed ratio: 1：2

Broader market speed (milling tank speed): 00-530 Rev / min

Milling tank rotation speed: 00-265 Rev / min

Broader market speed: Frequency variable speed, programmable control

Control method

With timing, automatic shutdown.

Can be set automatic reversing

Can be set intermittent rotation

Intelligent control

Limit switch is mounted, with open lid power off, stop turning the function

Max continuous working time (Full load): 72 hours

Can be equipped with ordinary milling tanks model (can be equipped with four such tanks): 250ML 500ML 100ML

Can be equipped with stainless steel vacuum ball milling tanks (can be equipped with four such tanks): 250ML 500ML

Can be equipped with stainless steel vacuum models (can be equipped with four such tanks): 250ML 500ML
