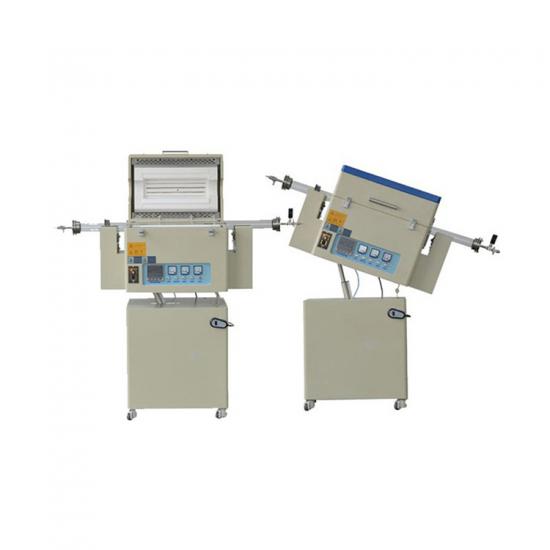

TOB TOB-DSP-1200℃-SRII Single-Temperature Zone Rotating Tube Furnace (1200℃,4KW)

Power: 4 KW

Furnace tube size(mm): Dia 120(OD) X1200

Dimension: 600X440X1100

Power supply voltage: 220V

Phase number: Single-phase

Temperature control mode

1.Yudian temperature control: 30 sections can only use PID temperature regulation.

2.FP93 temperature control (from Japan)

Control accuracy: +/- 1 ℃

Tube rotation speed: Stepless variable speed motor, speed can be adjustable between (1-25 turn / min)

Motor rotation power: 40W

Furnace tilt angle range: 0-30 degrees

Electric lift support frame power: 40W

Trigger: Phase-shift trigger

SCR: 106 / 16E Germany Simon Kang

Max temperature: 1200 ° C

Rated temperature: 1100 ℃

Heating rate: ≤30 ℃/ Min (Available upon request modification)

Recommended heating rate: ≤20℃/ Min

Heating length: 400mm

Thermocouple Type: K type

Surrounding surface temperature: ≤45℃

Security System: overcurrent protection.

Cap protection system: when the lid open relay will automatically cut off the main power supply, effectively ensure the safety of users
