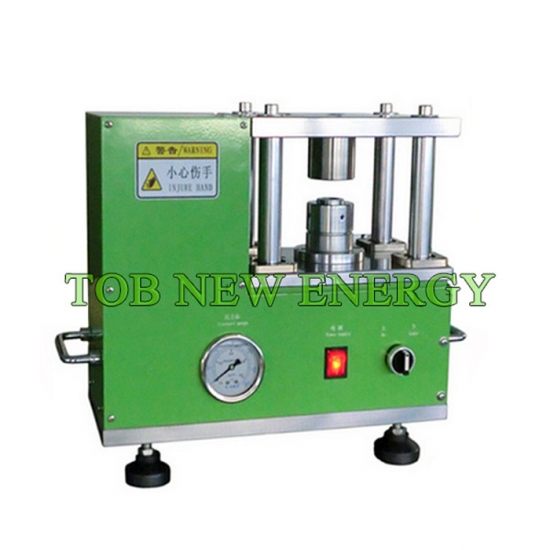

TOB TOB-DF-150 Automatic Electric Coin Cell Crimping Machine (AC 220V-110V, 50HZ)
Source voltage: AC220V-110V, 50HZ
Power: 120W
Die Set & Compatibility
Assembling dies for CR2016, CR2025 & CR2032 coin cells
Optional: Crimping die for CR2450 coin cell is available upon request
Assembling Pressure
Recommended assembling pressure for CR20XX coin cells is about 100kg/cm2,
Max. pressure can be applied to 200kg/cm2, up to 8T
Measurement Accuracy: ± 0.5%FS
Product Dimensions: 385 * 160 * 325mm
Weight: About 40kg
Application Notes: Electrolytes are highly corrosive materials, and therefore the dies must be cleaned with alcohol after each use to avoid corrosion and deformation.
