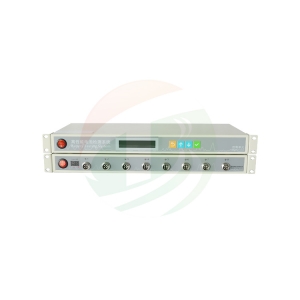

TOB TOB-CT-4008-5V5mA Coin Cell Battery Test Analyzer (0.025-5mah, 0-5V)

Input Power: AC 110V/220V ±10% 50Hz/60Hz

Resolution: AD：16bit；DA：16bit

Input Resistance: ≥10 GΩ

Input Power: 354mW

Channel Features: Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode: Independent Control

Voltage

Constant Voltage Range: 25mV~5V

Discharge Min Voltage: 0V

Accuracy: ± 0.05% of FS

Stability: ± 0.05% of FS

Current

Per Channel Current Range: 0.025mA-5mA

Accuracy: ± 0.05% of FS

Stability: ± 0.05% of FS

Power

Per Channel Output Power: 0.025W

Stability: ± 0.1% of FS

Time

Current Response Time: 1ms (0-Full Range)

Step Time Range: ≤(365*24 )hour/step，Time Form Support 00：00：00(h、min:s、ms)

Data Recording

Record Condition

Minimum Time Interval: 100ms

Minimum Voltage Interval: 10mV

Minimum Current Interval : 0.01mA

Record Frequency: 10Hz

ChargeCharge Mode: Constant Current Charge, Constant Voltage Charge, Constant Current and Constant Voltage Charge, CPC

End Conditon: Voltage, Current, Relative Time, Capacity

Discharge

Discharge Mode: CCD、CPD、CRD

End Condition: Voltage、Current、Relative Time、Capacity、

Pulse

Charge: CCC, CPC

Discharge: CCD, CPC

Min Pulse Width: 500ms

Automated Switch: Automated swith from charge to discharge for each pulse

End Condition: Voltage, Test Time

Cycle

Loop Measure Range: 1~65535 times

Max Steps Per Loop: 254

Nested Loop: Nested loop Function，Max Support 3 Layers

Protection

Software Protection

Power-down Data Protection

Off-line Testing Function

Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time

Hardware Protection: Additional Anti-reverse Protection Model

DCIR testing: Support

Voltage and Current Testing Sample: 4-wire connecting

Noise: <85dB

Database: MySQL Database

A Means of Communication of Upper Machine: TCP/IP Protocol

Data Output: EXCEL、TXT、Graph

Communication Interface: Ethernet Port

Per Unit Main Channels No.: 8

Dimensions: 250*200*60(mm)
