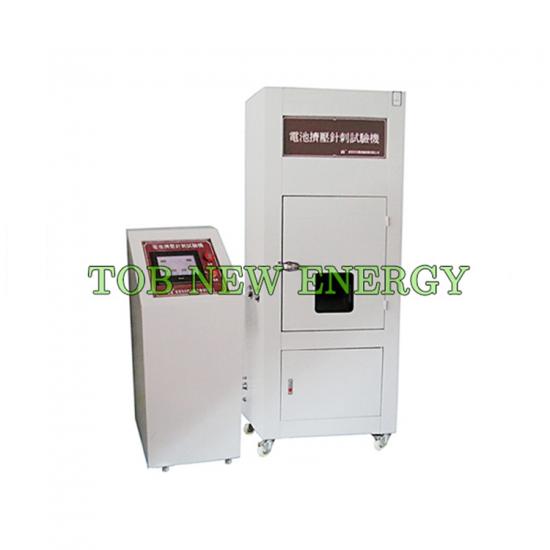

TOB TOB-BNCT Battery Needling And Crushing Testing Machine (1500W)

Dimension: 750*650*1900mm

Weight: 250kg

Controller dimension: 330*330*1040mm

View window dimension: 200*200mm, 10mm thickness Double explosion-proof glass

Source voltage: AC 380V, 50HZ

Power: 1500W

Needling/Crushing mode: Hydraulic

Force range: 1-15KN，±1% accuracy

Plate diameter: 150mm

Max testing size: 200*200*200, adjustable

High temperature resistant steel needle: φ3mm φ5mm φ8mm

Needling speed: 0-80mm/s, adjustable,

Delayed function: 0-9999s can be set

Anti explosion case: Bottom is provided with four universal wheels, and can move freely

Exhaust fan port: 15mm diameter

Datasheet
