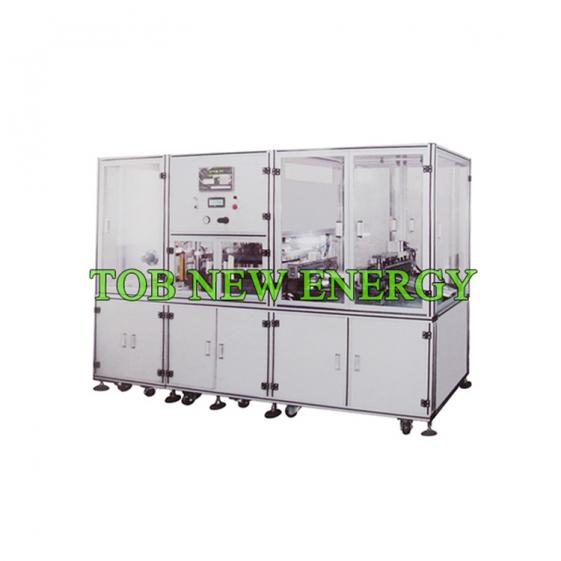

TOB TOB-05-200-AFCF Automatic Pouch Cell Case/Cup Forming Machine (200*200*6mm)
ManufacturerTOB(View more products from this manufacturer)
ModelTOB-05-200-AFCF
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Source voltage: AC 220V, 50HZ
Power: 1000W
Air compression: ≥0.6MPa, 15L/S
Operating platform size: 400*300mm
Feeding width: Max: 300mm
Cutting length: Adjustable
Aluminum laminated film thickness: 0.11-0.2mm
Cylinder pressure: 10T
Material roller diameter: Max: 250mm
Dimension: 1950*950*1860mm
Weight: 1T
Depth of parallelism: 0.02mm
Aluminum film stretching force: 0-5N, adjustable
Punching depth: 0-6mm
Knife lift: 5 000 000 times
Output: 400-800EA/H
