-Measurement method:
+pH: Glass electrode method
+ORP: Platinum electrode method
+Ion: Ion electrode method
+Temperature: Thermistor resistor
-Display: Touch panel color graphic LCD
-Measurement range:
+pH: pH0.000～14.000
+ｍV （ORP）: -2000.0～2000.0 mV
+Ion: Depends on the sensor used
+Temperature: 0.0～100.0℃; Ion: Depends on the electrode
-Display Range:
+pH: pH-2.000～16.000
+ｍV （ORP）: -2200.0～2200.0 mV
+Ion （Manual/Auto Range Switching） （mol/L selectable）:
Zoom OFF:
0.0～19.9μg/L
20～199μg/L
0.20～1.99mg/L
2.0～19.9mg/L
20～199mg/L
0.20～1.99g/L
2.0～19.9g/L
20～199g/L
200～1990g/L
Zoom OＮ:
0.00～19.99μg/L
20.0～199.9μg/L
0.200～1.999mg/L
2.00～19.99mg/L
20.0～199.9mg/L
0.200～1.999g/L
2.00～19.99g/L
20.0～199.9g/L
200～1999g/L
+Temperature: -5.0～110.0℃
-Display resolution switch:
+pH: 0.01pH/0.001pH
+ｍV （ORP）: 1mV
+Ion: 0.0μg/L～1990g/L （Maximum to 3-digits）; 0.00μg/L～1999g/L （Maximum to 4-digits）
-Repeatability (main body):
+pH: ±0.002pH
+ｍV （ORP）: ±0.2mV
+Ion: ±0.5% FS
+Temp.: within ±0.2℃
-pH Temperature Compensation Range:
ATC（Auto Temperature Compensating）: 0～100.0℃
MTC（Manual Temperature Compensating））: 0～100.0℃
-pH Calibration: JIS pH standard solution, US standard solution, customized standard solution Max. 5 point calibration
-Ion Calibration: Max. 5 point calibration
-Temperature Calibration: 1 point calibration
-Performance Guaranteed Temperature, Humidity: 0～45℃ 20～85％ or below （condensation-free）
-Data Memory: 1000 data
-Print Function: Optional External Printer EPS-P30 connectable
-mV Shift Function: Yes
-External Input/Output:
+RS-232C Interface: Yes （2ch）
+USB （Host）: yes
+USB （peripheral, Micro）: Yes
+Analog Output:
pH: ±700mV （pH0～14）
ｍV （ORP）: ±1V （0～±2000mV）
Ion: 0～1VFS
Temperature: 0～1V （0～100℃）
Alarm Upper Limit: Open collector
Lower Limit: Open collector
-Option Connection:
+External printer: yes
+Turntable（TTT510/710）: yes
+Electrode Selector （ES-1G）: yes
+Control Box （AC-1V）: yes
-Auto Hold Function: Yes
-Auto Hold Conditions Settings: Yes
-Statistical Calculation Function: Average Value
-Calibration History Creation Function: Max.20 run lots
-Interval Measurement: Yes
-Security Function: yes
-Upper/Lower Limit Output Setting: yes
-Customized Standard Solution Table Creation Function: yes
-Power Source: AC100～240V （Special AC Adapter）
-Power Consumption: Approx.11VA
-Main Unit Dimensions （Excluding Protruding Parts）: Approx.130W×60H×230Dmm
-Main Unit Weight: Approx. 0.8kg
-Inluding:
+ Main unit
+ Sensor Holder: 7430850K
+ Sensor stand (Stand, strut, stopper): 7430860K
+ Tilt stand: 7430870K
+ Sensor attachment (G): 0IB00004

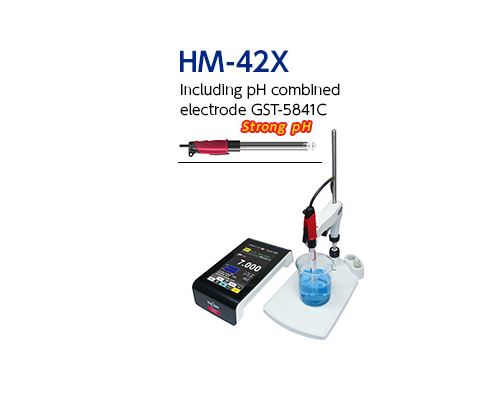

+ pH sensor: GST-5841C
+ Standard solution pH 6.86 500mL: 143F192
+ Standard solution pH 4.01 5mml: 143F191
+ Reference sensor internal solution 50mL
+ AC adapter: 7430880K
+ Power cord: 118C229
+ Ground wire (2m): X0979500
+ Beakers (150mL) (3pcs): 0DE00001
+ Manual
-Tính năng:
+ Màn hình cảm ứng màu hiện đại
+ Có thể lựa chọn đo pH hoặc Ion bằng cách chuyển điện cực
+ Có 2 cổng kết nối (chức năng nhận dạng tự động)
+ Tự động nhận diện PC, bàn xoay, máy in
+ Thiết bị chuẩn USB
+ Chức năng bộ nhớ dữ liệu lớn(2.000 dữ liệu mỗi kênh)
Phạm vi đo lường:
pH: 0,000 - 14.000
ORP: 0,0 - ± 2000 mV
Nhiệt độ: 0-100 ° C
(Điện cực ORP được bán riêng)
Ứng dụng: Sản phảm này được sử dụng để đo độ pH, ORP trong phòng thí nghiệm.
Datasheet
