Cylinder capacity @700 bar: 20 ton / 205 kN
Stroke: 100 mm
Effective area: 29.3 cm²
Oil capacity: 292 cm³

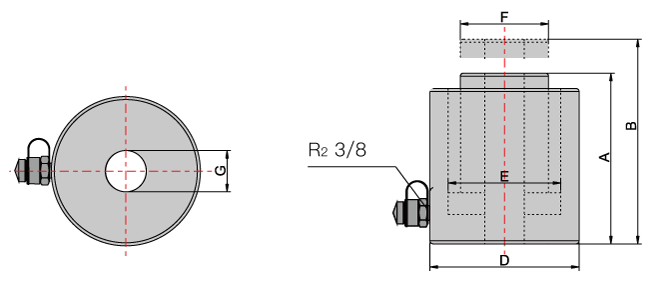

Closed height (A): 223 mm
Extended height (B): 323 mm
Outside diameter (D): 98 mm
Centre hole (G): 27 mm
Inside diameter (E): 73 mm
Piston rod diameter (F): 54 mm
G.W.: 10 kg
Handle: No
Recommended pump: HHB-700

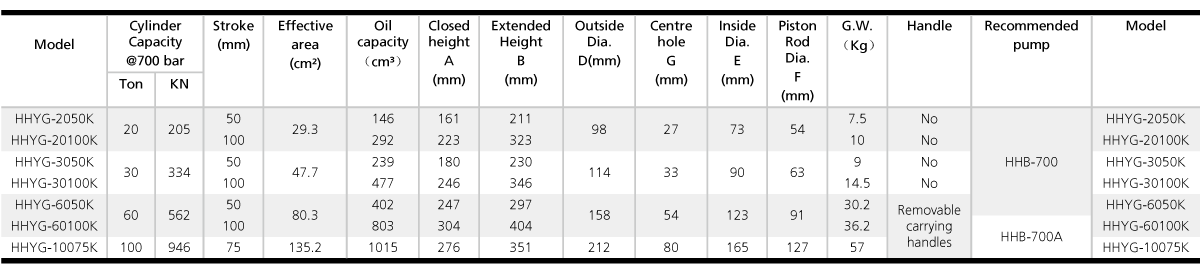

Parameters:
