TLP HHYG-15050KS Double-acting, Hollow Plunger Cylinder (150T; 50mm)

Cylinder Capacity @700bar: 150T; 50mm

+ Ton: 150

+ Enter trace (kN): 1495

+ Return trace (KN): 909

Stroke (mm): 50

Effective Area Extend (cm²): 213.5

Effective Area Return (cm²): 129.9

Oil Capacity Extend (cm³): 1118

Oil Capacity Return (cm³): 650

Closed Height A (mm): 217

Extended Height B (mm): 267

Outside Dia D (mm): 258

Center Hole G (mm): 100

Inside Dia H (mm): 210

Piston Rod Dia F (mm): 166

Weight (kg): 69.7

Handle: Removeable carrying handles

Recommened pump: HHB-630B

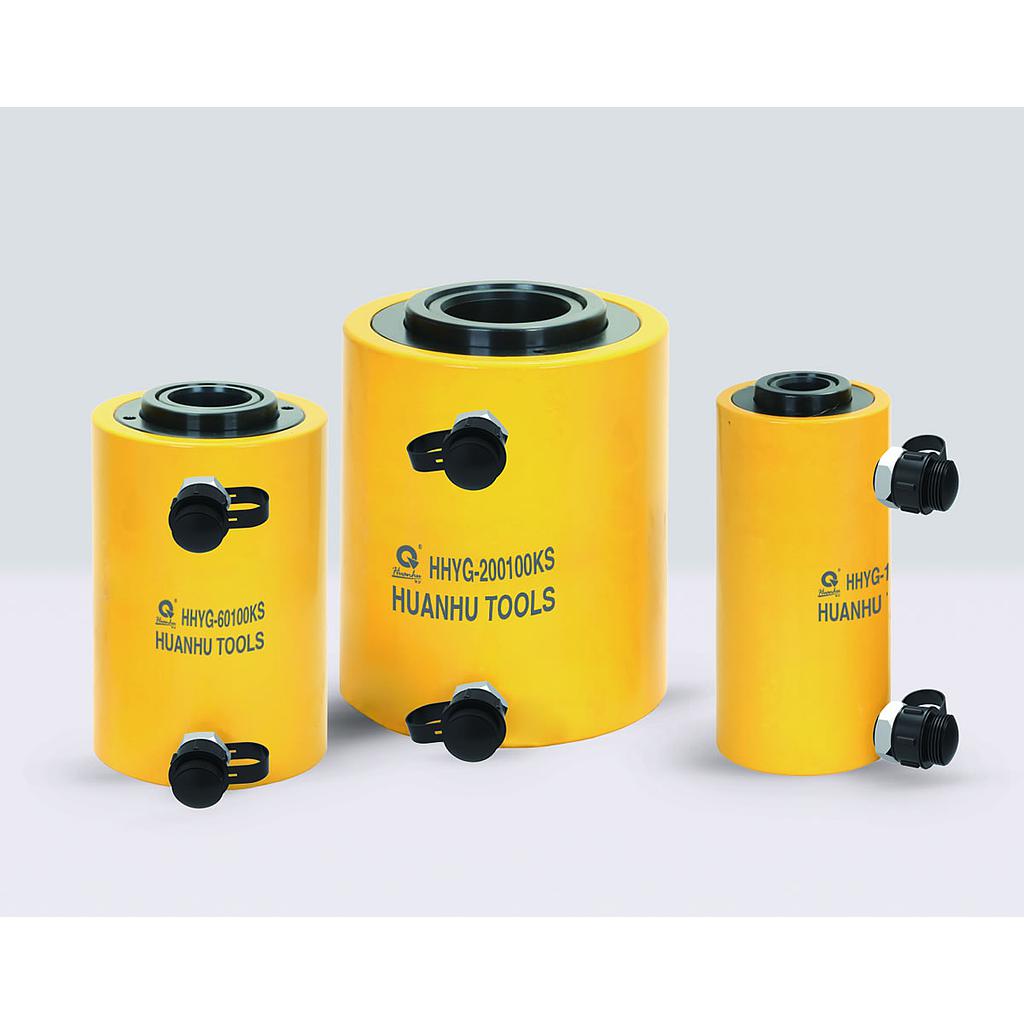

Double-acting, Hollow Plunger Cylinders

Working pressure: 700bar

For use in Testing, Maintenance and Tensioning Applications

Hollow plunger design allows for both push and pull forces.

Double acting, hydraulic return.

High strength alloy steel for durability.

Baked enamel finish for increased corrosion resistance.

Each cylinder has an HH-II R2 3/8 male half coupler and dust cap.
