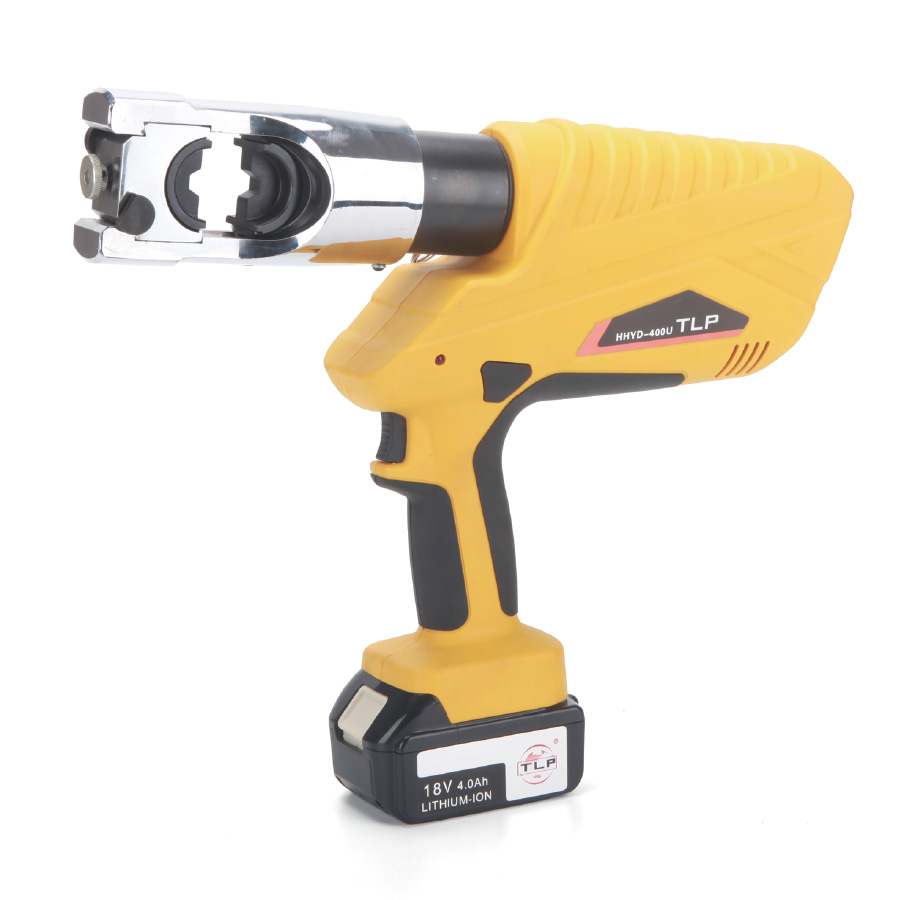

Hydraulic Ram Output: 11 Ton
Ram Stroke: 20 mm
Battery Capacity: 180 crimping cycles
Crimping Range: 16 – 400 mm²
Crimping Time: 4 – 12 s (depending on cable size)
Battery: 18 V / 4.0 Ah Li-ion
Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²
Weight: 16.1 kg
Packing Size: 585 × 500 × 170 mm
Characteristics:
●H-head for deep groove, rotating 350°.
●Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.
●10000+ cycle service life.
●Ram retracts to original position automatically when operation is complete.
●Manual retraction in case of need.
●Audible buzzer and red LED light in case of error.
●Quick motor stop for higher user safety.
●Powerful 18V Li-ion battery with low battery warning.
●Ergonomic 2-component grip area and balanced center of gravity.
●Sturdy plastic storage box.
