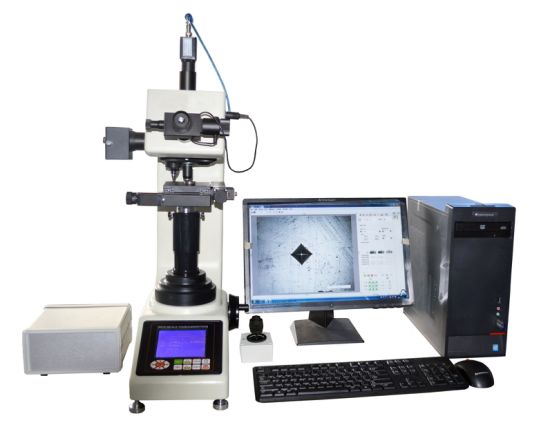

TIME V3.0 Micro/Vicker Hardness Automatic Measuring System

Technical Specification

Computer: 2G memory, 500G hard disk, 19 inch LCD screen

Operating system: Win XP, Win7

Digital imaging system

High resolution: 130 million pixel, 1280×1024

High speed acquisition: 1280×1024 Resolution: 25 FPS

High definition: Black and white images and clarity is better.

Target surface size: 1/2 inch

X-y automatic test table

Table size: 110×110×50 mm

Maximum travel: 50×50 mm

Minimum step: Less than 2μm

Movement speed: Adjustable

Control mode: Manual control, electric control, computer control

X-y test table - computer control mode

Location movement: The test table directly moves to the software settings;

Point movement: Select any point of the sample, moved to the below of the indenter;

Directional movement: Click the eight directions to make the test table move and the moving step can be set up;

Arbitrary movement: Click any directions to make the test table move and make it easy for users to browse the specimen surface;

Variable speed movement: There are two speeds (fast and slow) when moving the test table and the speed is optional and adjustable;

Other function: Original position arbitrary setting, automatic reset, mechanical limit, and other professional features to meet various requirements.

Measuring method:

Automatic mode——Automatic test table moving (X, y, Z direction) + automatic reading

Manual mode 1——Automatic loading + manual eyepiece scribed line measurement

Manual mode 2——Manual test table moving + manual focus + Automatic / manual measurement

Automatic / manual reading

Automatic reading time: Single indentation reading time is about 300 milliseconds; Automatic measurement precision: 0.1μm; Automatic measurement repeatability: ±0.8%

Manual reading: Manual pick, automatic search points, 4 points measurement, 2 diagonal measurement

Results save / output

Save / output measurement data and experimental parameters, including D1, D2, HV, X, y etc.;

Save / output effective hardening layer depth curve report;

Save / output image.

Standard Delivery

Computer (Hard disk: 500G, Memory: 2G, 19 inch LCD screen)

Ink Jet Printer

CCD Camera

1.5× Adapter

USB Softdog

Control Cables

RS232 Cable

Joystick

Motorized Test Table

Motorized Test Table Control Box

Measuring Software
