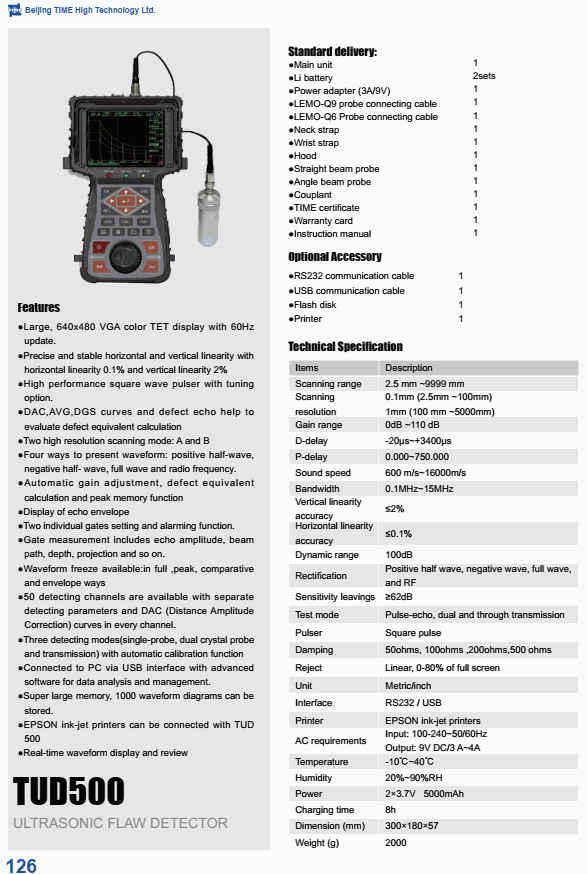

Technical Specification
Scanning range: 2.5 mm ~9999 mm
Scanning Resolution: 0.1mm (2.5mm ~100mm); 1mm (100 mm ~5000mm)
Gain range: 0dB ~110 dB
D-delay: -20µs~+3400µs
P-delay: 0.000~750.000
Sound speed: 600 m/s~16000m/s
Bandwidth: 0.1MHz~15MHz
Vertical linearity Accuracy: ≤2%
Horizontal linearity accuracy: ≤0.1%
Dynamic range: 100dB
Rectification: Positive half wave, negative wave, full wave, and RF
Sensitivity leavings: ≥62dB
Test mode: Pulse-echo, dual and through transmission
Pulser: Square pulse
Damping: 50ohms, 100ohms ,200ohms,500 ohms
Reject: Linear, 0-80% of full screen
Unit: Metric/inch
Interface: RS232 / USB
Printer: EPSOn ink-jet printers
AC requirements
Input: 100-240~50/60Hz
Output: 9V DC/3 A~4A
Temperature: -10℃~40℃
Humidity: 20%~90%RH
Power: 2×3.7V 5000mAh
Charging time: 8h
Dimension (mm): 300×180×57
Weight (g): 2000
Standard delivery:

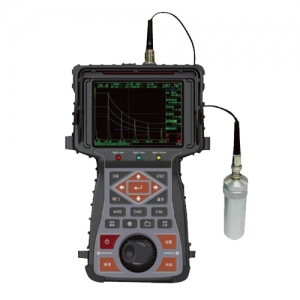

●Main unit
●2 x Li battery
●Power adapter (3A/9V)
●LEMO-Q9 probe connecting cable
●LEMO-Q6 Probe connecting cable
●neck strap
●Wrist strap
●Hood
●Straight beam probe
●Angle beam probe
●Couplant
●TIME certificate
●Warranty card
●Instruction manual
Optional Accessory
●RS232 communication cable
●USB communication cable
●Flash disk
●Printer
