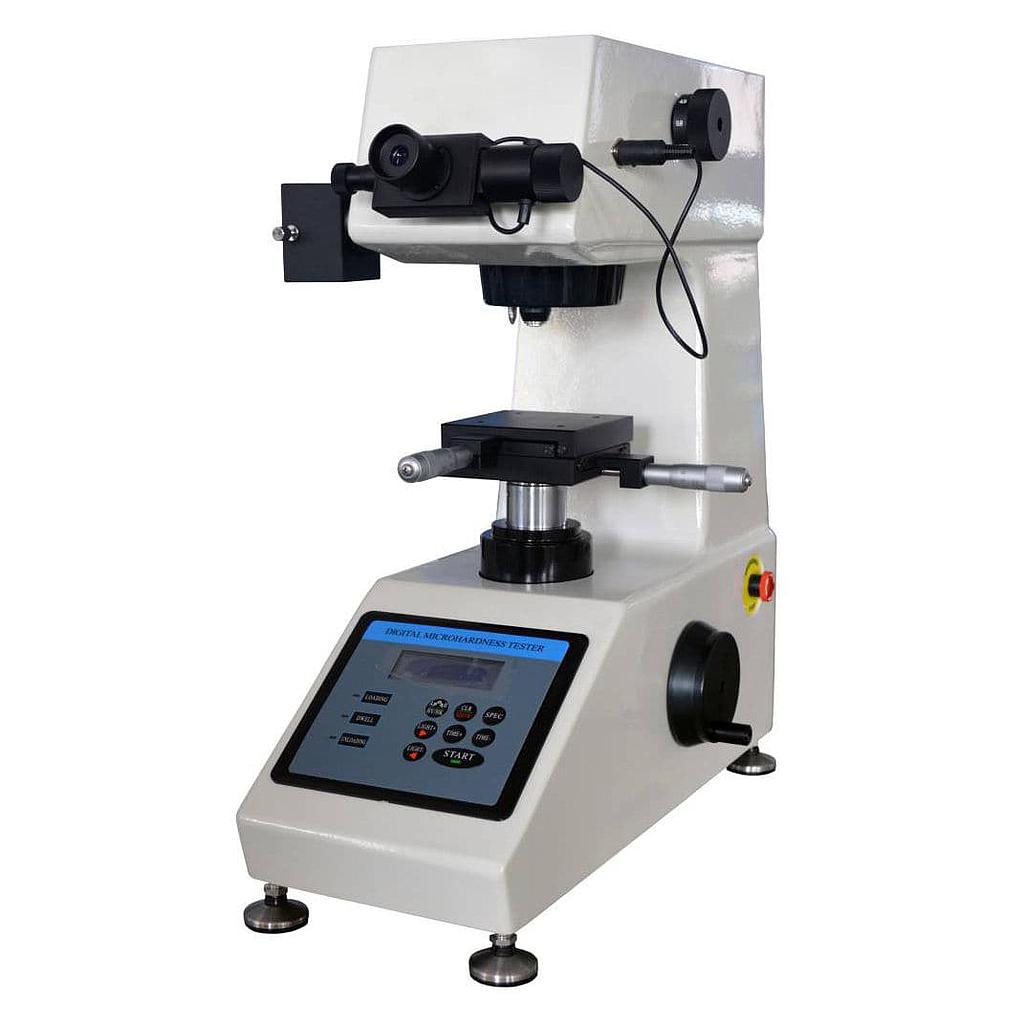

TIME TH710 Micro Vickers Hardness Tester (1HV~2967HV)

Test Force: 0.098N(10gf), 0.246N(25gf), 0.49N(50gf), 0.98N(100gf), 1.96N(200gf), 2.94N(300gf), 4.90N(500gf), 9.80N(1000gf)

Test Range: 1HV~2967HV

Test Mode: HV/HK

Loading Method: Automatic (Loading/Dwell/Unloading)

Conversion Scale: HK, HRA, HRBW, HRC, HRD, HRGW, HRWK, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW

Shifting between Objective and Indenter: Manual

Total Magnification: 100×, 400×

Resolution: 0.25μm

Dwell Time: 0~60s

Light Source: Halogen Lamp

X-y Test Table

Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm

Max. Height of Specimen: 90mm

Throat: 100mm

Power Supply: AC220V, 50Hz

Execute Standard: ISO 6507, ASTM E384, jIS Z2244, GB/T 4340.2

Dimension: 480×325×545mm

Packing Dimension: 600×360×800mm

Weight (kg)

net Weight: 31

Gross Weight: 44

Standard Delivery

Main unit: 1 pc

Diamond Micro Vickers Indenter: 1 pc

10× Reading Microscope: 1 pc

10×, 40× Objective: 1 pc

Weights: 6 pcs

Weight Axis: 1 pc

Cross Test Table: 1 pc

Flat Clamping Test Table: 1 pc

Thin Specimen Test Table: 1 pc

Filament Clamping Test Table: 1 pc

Horizontal Regulating Screw: 4 pcs

Level: 1 pc

Fuse 1A: 2 pcs

Halogen Lamp 12V, 15~20W: 1 pc

Power Cable: 1 pc

Screw Driver: 2 pcs

Hardness Block 400~500 HV0.2: 1 pc

Hardness Block 700~800 HV1: 1 pc

Anti-dust Cover: 1 pc

Usage Instruction Manual: 1 pc
