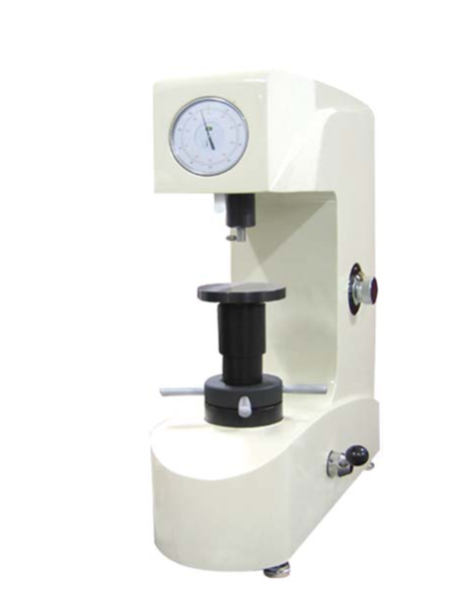

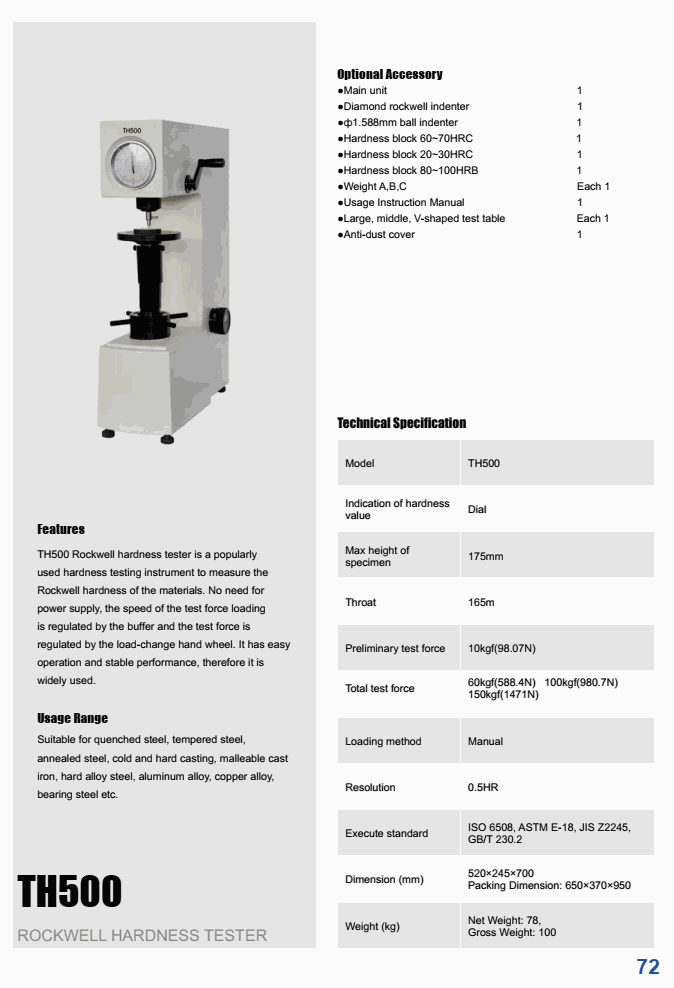

TIME TH500 Motorized Rockwell Hardness Tester (10kgf)

Indication of hardness value: Dial

Max height of specimen: 175mm

Throat: 165m

Preliminary test force: 10kgf(98.07n)

Total test force: 60kgf(588.4n); 100kgf(980.7n); 150kgf(1471n)

Loading method: Manual

Resolution: 0.5HR

Execute standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2

Dimension (mm): 520×245×700Packing Dimension: 650×370×950

Weight (kg)

Net Weight: 78

Gross Weight: 100

Optional Accessory

Main unit

Diamond rockwell indenter

ф1.588mm ball indenter

Hardness block 60~70HRC

Hardness block 20~30HRC

Hardness block 80~100HRB

Weight A

Weight B

Weight C

Large test table

middle test table

V-shaped test table

Anti-dust cover

Datasheet
