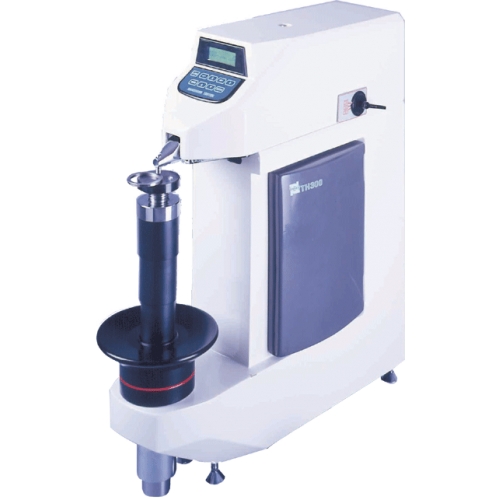

TIME TH300 Rockwell Hardness Tester (98.07n/10kgf)

Hardness scales: Rockwell A, B, C,D,E,F, G, H, K ,L, M ,P, R, S, V

Resolution: 0.1Rockwell unit

Pre-load: 98.07n/10kgf

Total load: 588.4n/60kgf, 980.7n/100kgf, 1471n/150kgf

Display: Matrix backlight LCD

Language: English, French, Germany

Operation: Menu selectable, Membrane keypad

Test process: Automatic

Load duration: 2-50 seconds, can be set, dynamic displayed and stored

Functions:

Upper / lower hardness limits setting and alarming

Data statistics: Ave., Max., Min., standard Deviation

Convert tested values to HB, HV, HLD and δb (Tensile-strength)

Curvature correction: cylinder and sphere surface

Data output: RS232

Tester standard: ISO6508.2, ASTM E-18

Testing space:

Vertical: 250mm (9.85”)

Horizontal: 150mm (5.91”)

Work piece size:

External surface cylinder: Min.Ø3mm (0.120”)

Internal surface cylinder: Min.Ø23mm (0.900”)

Power supply: 220v/110v, 50Hz, 4A

Dimensions (mm): 715×225×790

Weight (kg): 100

Standard Delivery

Main unit

Test block B

Test block C

120° cone diamond indenter

1/16" (1.5875mm) ball indenter

1/16" (1.5875mm) spare ball

Screw for indenter

Round flat anvil Ø70

Large vee anvil

Power supply cable

Instruction manual

Optional Accessory

Mini-printer TA230

Data communicating cable

Short diamond indenter

Flat diamond indenter

Slim diamond indenter

1/8"(Ø3.175mm) indenter and spare ball

1/4"(Ø6.350mm) indenter and spare ball

1/2"(Ø12.70mm) indenter and spare ball

Round flat anvil Ø225

Round flat anvil Ø150

Small vee anvil

Flat /vee anvil

Assistant support

Assistant joist
