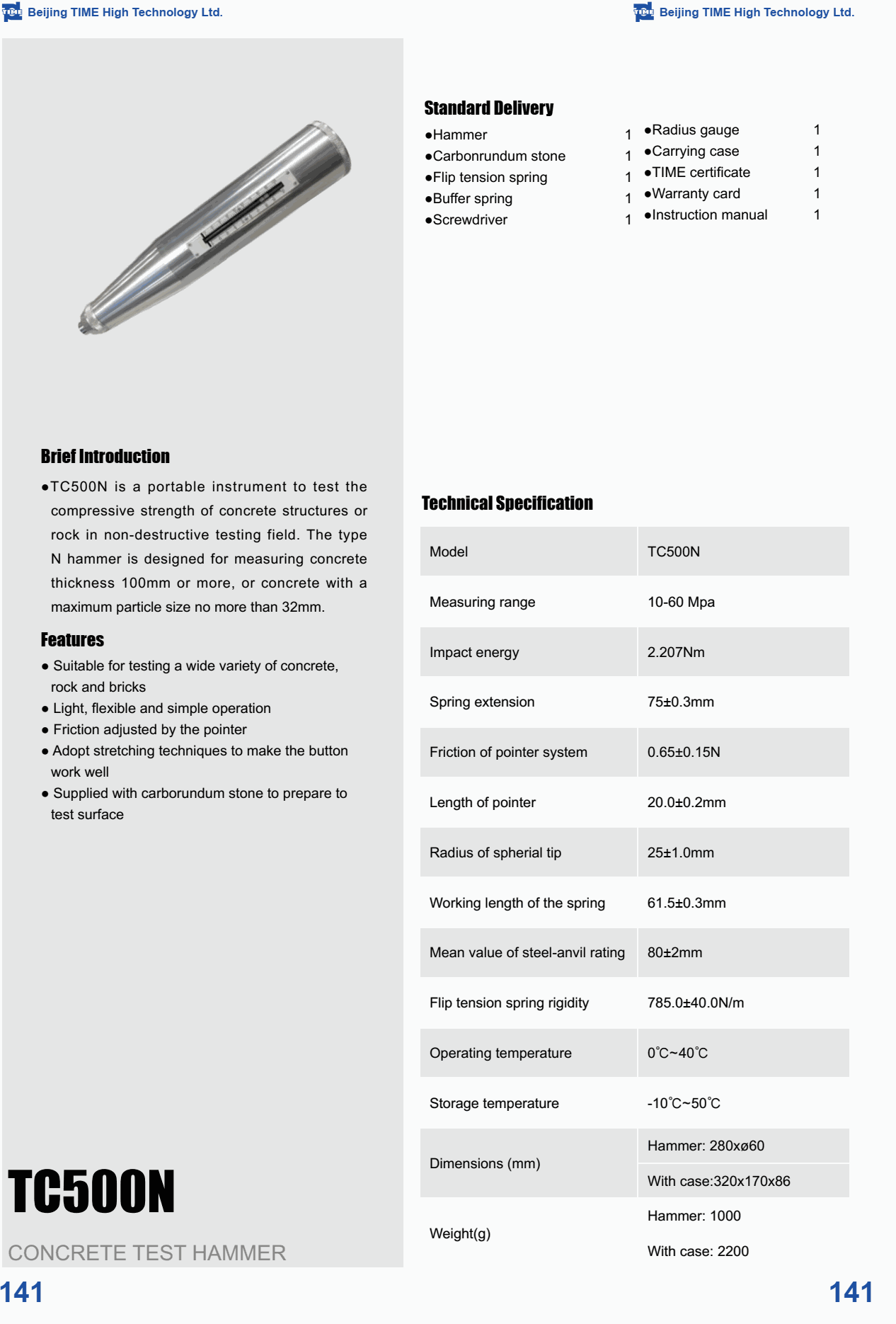

TIME TC500N Concrete Test Hammer (10-60 Mpa; 2.207nm)

Measuring range: 10-60 Mpa

Impact energy: 2.207nm

Spring extension: 75±0.3mm

Friction of pointer system: 0.65±0.15n

Length of pointer: 20.0±0.2mm

Radius of spherial tip: 25±1.0mm

Working length of the spring: 61.5±0.3mm

Mean value of steel-anvil rating: 80±2mm

Flip tension spring rigidity: 785.0±40.0n/m

Operating temperature: 0℃~ 40℃

Storage temperature: -10℃~ 50℃

Dimensions (mm):

Hammer: 280xø60

With case:320x170x86

Weight(g):

Hammer: 1000

With case: 2200

Standard Delivery

●Hammer

●Carbonrundum stone

●Flip tension spring

●Buffer spring

●Screwdriver

●Radius gauge

●Carrying case

●TIME certificate

●Warranty card

●Instruction manual
