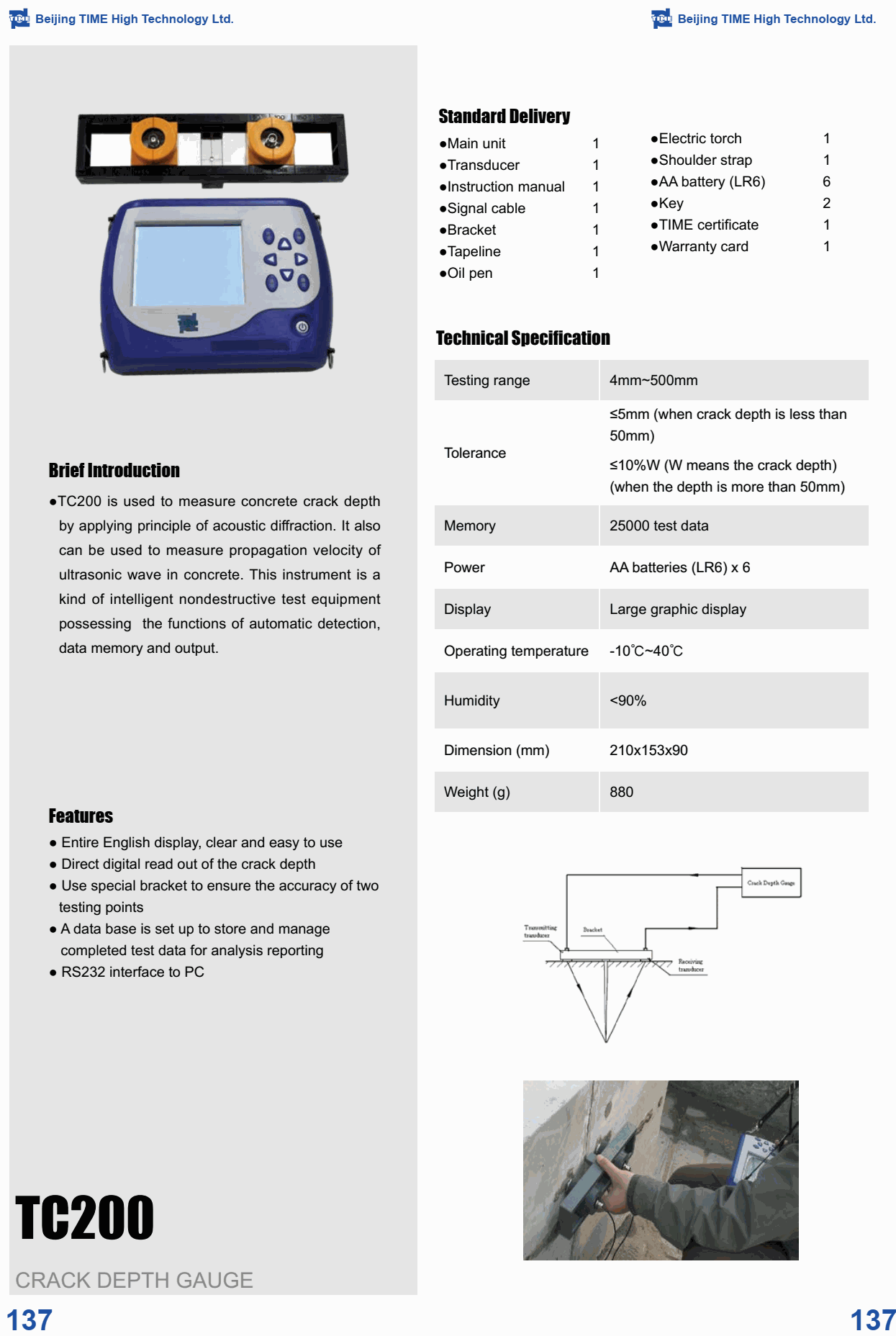

TIME TC200 Crack Depth Gauge (4mm~500mm)

Testing range: 4mm~500mm

Tolerance:

≤5mm (when crack depth is less than 50mm)

≤10%W (W means the crack depth)

(when the depth is more than 50mm)

Memory: 25000 test data

Power: AA batteries (LR6) x 6

Display: Large graphic display

Operating temperature: -10℃~40℃

Humidity: <90%

Dimension (mm): 210x153x90

Weight (g): 880

Standard Delivery

●Main unit

●Transducer

●Instruction manual

●Signal cable

●Bracket

●Tapeline

●Oil pen

●Electric torch

●Shoulder strap

● 6x AA battery (LR6)

●2 x Key

●TIME certificate

●Warranty card
