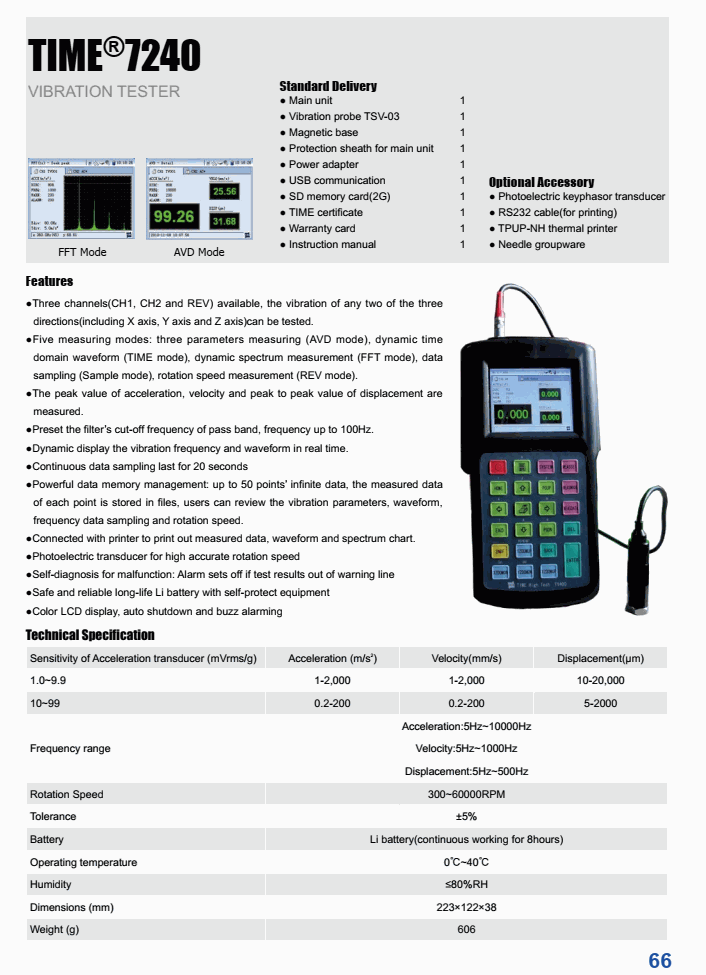

TIME 7240 Vibration Tester (1.0~9.9; 10~99 mVrms/g)

Sensitivity of Acceleration` transducer (mVrms/g): 1.0~9.9; 10~99

Acceleration: (m/s2): 1-2,000; 0.2-200

Velocity(mm/s): 1-2,000; 0.2-200

Displacement:(μm): 10-20,000; 5-2000

Frequency range

Acceleration:5Hz~10000Hz

Velocity:5Hz~1000Hz

Displacement:5Hz~500Hz

Rotation Speed: 300~60000 RPM

Tolerance: ±5%

Battery: Li battery(continuous working for 8hours)

Operating temperature: 0℃~40℃

Humidity: ≤80%RH

Dimensions (mm): 223×122×38

Weight (g): 606

Standard Delivery

Main unit

Vibration probe TSV-03

Magnetic base

Protection sheath for main unit

Power adapter

USB communication

SD memory card(2G)

TIME certificate

Warranty card

Instruction manual

Optional Accessory

Photoelectric keyphasor transducer

RS232 cable(for printing)

TPUP-NH thermal printer

Needle groupware
