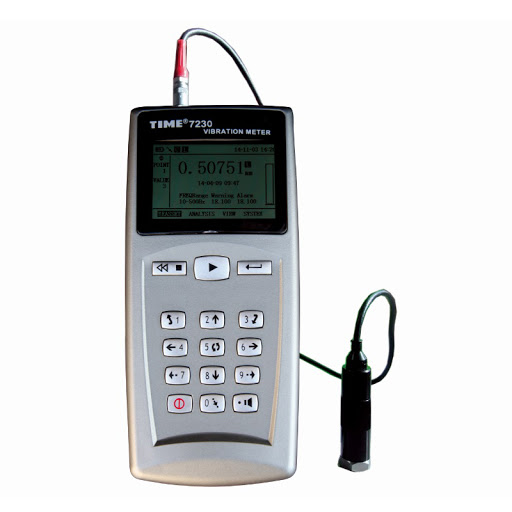

TIME 7231 Vibration Tester

Measuring range

Acceleration: 1m2/s ~392m2/s (Peak)

Velocity: 0.1cm/s~80cm/s(RMS)

Displacement:

0.01mm~18.1mm (Peak-Peak)

Frequency range

Acceleration: 10Hz~200Hz、10Hz~500Hz、10Hz~1KHz、 10Hz~10KHz

Velocity: 10Hz~200Hz、10Hz~500Hz、10Hz~1KHz

Displacement: 10Hz~200Hz , 10Hz~500Hz

Accuracy: ±5%

Power: Li battery (continuous working 20 hours without backlight)

Temperature: 0℃~40℃

Humidity: ≤80%RH

Dimension (mm): 171× 78.5×28

Weight (g): 230

Standard Delivery　

Main unit

Protection pocket

Low sensitivity probe

Power adapter

Magnetic base　

TIME certificate　

Warranty card

Instruction manual　

Optional Accessory

Dataview

Needle groupware

TA230 printer

RS232 communication cable
