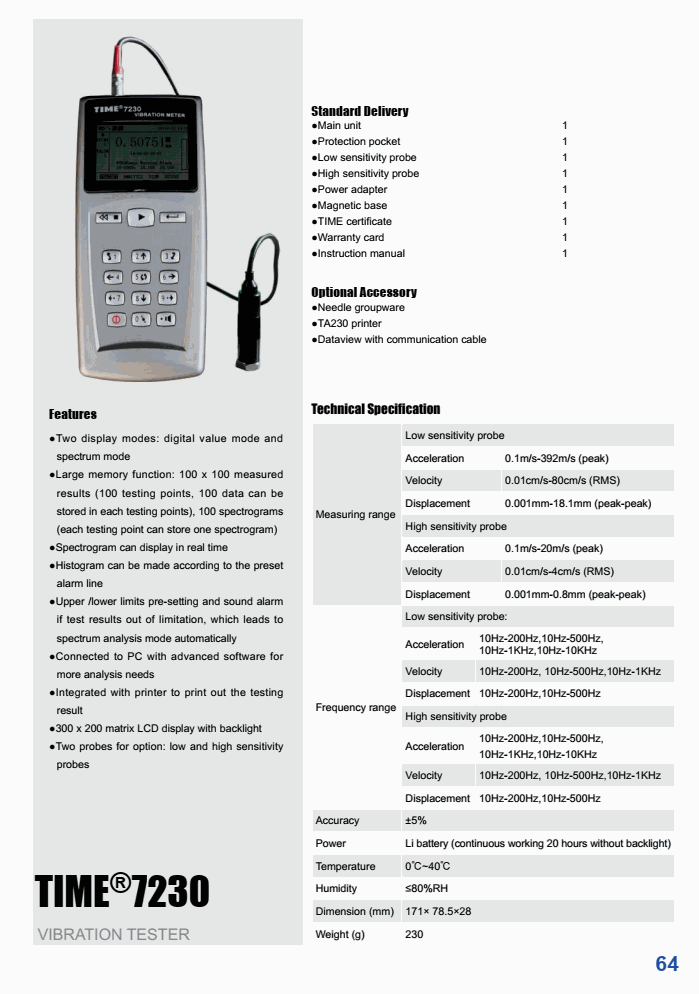

TIME 7230 Vibration Tester

Measuring range

Low sensitivity probe

Acceleration: 0.1m/s-392m/s (peak)

Velocity: 0.01cm/s-80cm/s (RMS)

Displacement: 0.001mm-18.1mm (peak-peak)

High sensitivity probe

Acceleration: 0.1m/s-20m/s (peak)

Velocity: 0.01cm/s-4cm/s (RMS)

Displacement: 0.001mm-0.8mm (peak-peak)

Frequency range

Low sensitivity probe:

Acceleration: 10Hz-200Hz,10Hz-500Hz, 10Hz-1KHz,10Hz-10KHz

Velocity: 10Hz-200Hz, 10Hz-500Hz,10Hz-1KHz

Displacement: 10Hz-200Hz,10Hz-500Hz

High sensitivity probe

Acceleration:

10Hz-200Hz,10Hz-500Hz, 10Hz-1KHz,10Hz-10KHz

Velocity: 10Hz-200Hz, 10Hz-500Hz,10Hz-1KHz

Displacement: 10Hz-200Hz,10Hz-500Hz

Accuracy: ±5%

Power: Li battery (continuous working 20 hours without backlight)

Temperature: 0℃~40℃

Humidity: ≤80%RH

Dimension (mm): 171× 78.5×28

Weight (g): 230

Standard Delivery　

Main unit

Protection pocket

Low sensitivity probe

High sensitivity probe　

Power: adapter　

Magnetic base　

TIME certificate　

Warranty card

Instruction manual　

Optional Accessory　

Needle groupware

TA230 printer

Dataview with communication cable
