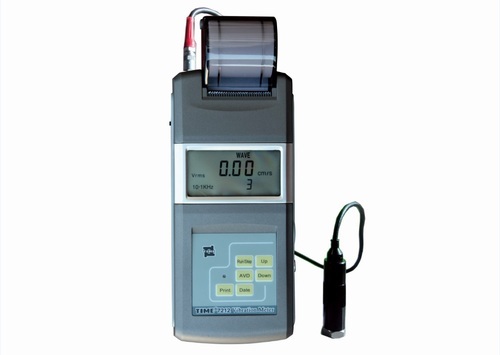

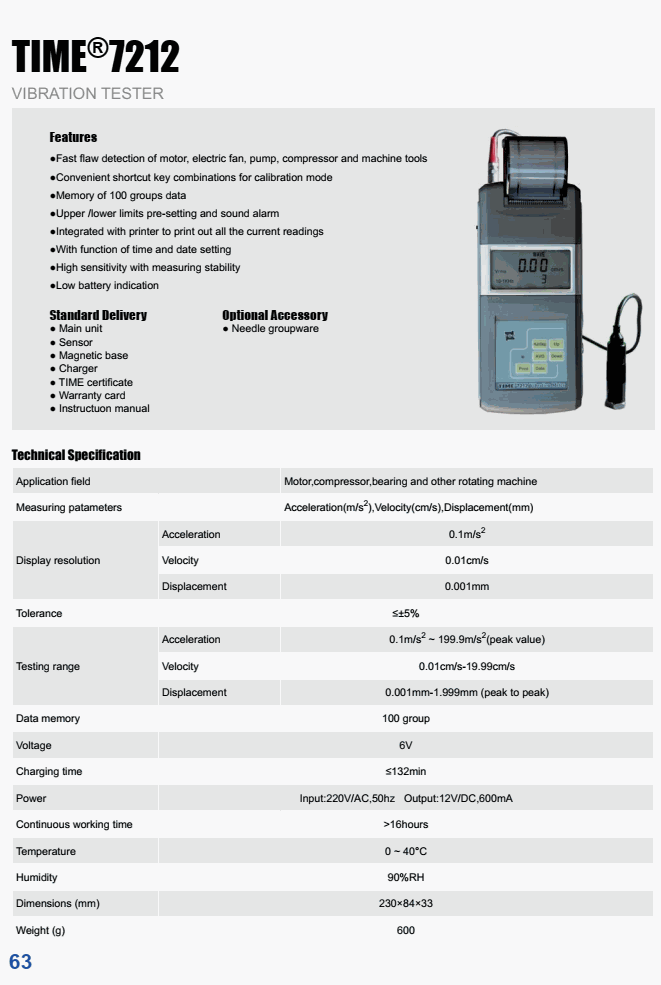

TIME 7212 Vibration Tester (0,001mm)

Application field: Motor,compressor,bearing and other rotating machine

Measuring patameters: Acceleration(m/s2), Velocity(cm/s), Displacement(mm)

Display resolution:

Acceleration: 0.1m/s2

Velocity: 0.01cm/s

Displacement: 0.001mm

Tolerance: ≤±5%

Testing range

Acceleration: 0.1m/s2 ~ 199.9m/s2(peak value)

Velocity: 0.01cm/s-19.99cm/s

Displacement: 0.001mm-1.999mm (peak to peak)

Data memory: 100 group

Voltage: 6V

Charging time ≤132min

Power

Input:220V/AC,50hz ; Output:12V/DC,600mA

Continuous working time: >16hours

Temperature: 0 ~ 40°C

Humidity: 90%RH

Dimensions (mm): 230×84×33

Weight (g): 600

Standard Delivery

Main unit

Sensor

Magnetic base

Charger

TIME certificate

Warranty card

Instruction manual

Optional Accessory

Needle groupware
