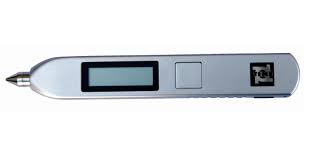

TIME 7120 Vibration Pen (0.1mm/s~199.9mm/s; ±5%±2)

Parameters: RMS of vibration velocity (mm/s)

Testing range

Velocity: 0.1mm/s~199.9mm/s

Frequency range

Velocity: 10Hz-1KHz, Acceleration: 10Hz-1KHz

Tolerance: ±5%±2

Display: 3½digits LCD

Power: Two button batteries (LR44 or SR44)

Battery capacity: Approx. 4.5 hours working continuously

Operating temperature: 0℃~40℃

Humidity: <85%

Dimensions (mm): 150×22×18

Weight (g): 55(including batteries)

Standard Delivery　

Main unit

2 x Battery

Protection pocket

TIME certificate

Warranty card

Instruction manual
